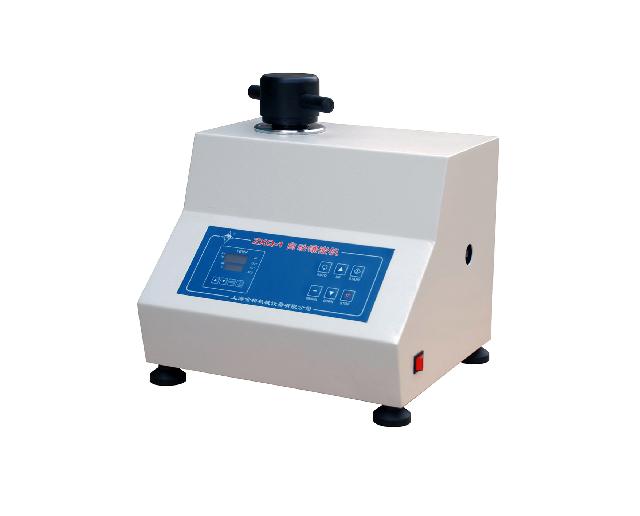

ZXQ-1 Compact Metallographic Mounting Press | Automatic Metal Sample Inlay, 650W, 3 Mold Sizes (CE)

ZXQ-1: The Space-Saver for Metal Labs Tired of Manual Sample Mounting‌‌

The ‌ZXQ-1 Automatic Metallographic Mounting Press‌ is your go-to solution for preparing ‌metal samples‌ like steel alloys, cast iron, or aerospace components. Designed for small labs or workshops, this compact machine automates the entire inlaying process – heating, pressing, and unloading – so you can focus on analysis, not manual prep. Its 650W heater and precise temperature control (up to 180°C) ensure ‌bubble-free mounts‌ even for tricky specimens like wire fragments or corroded surfaces. Perfect for QC labs, metallurgy students, or workshops handling ‌high-mix, low-volume metal samples‌.

‌Key Benefits :‌

• ‌Metal-Specific Design‌: Optimized for ‌hard alloys‌ and irregular shapes (e.g., gears, screws, sheet metal).
• ‌One-Touch Automation‌: Press a button – the machine heats, presses, and ejects your sample.
• ‌Compact & Portable‌: Fits on crowded benchtops (380×350×420mm) and weighs only 50kg.
• ‌Budget-Friendly‌: 650W heater cuts energy costs vs. industrial models.
• ‌Edge Protection‌: Secures fragile metal edges during grinding/polishing.

Technical Specs Table：‌

‌Parameter‌	‌ZXQ-1 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	650W, 220V, 50Hz
‌Temperature Range‌	0-180°C (auto-regulated)
‌Cycle Time‌	1-2 minutes (varies by material)
‌Dimensions‌	380×350×420mm (ultra-compact)
‌Weight‌	50kg
‌Certifications‌	CE
‌Best For‌	Steel, aluminum, titanium, castings

ZXQ-1 Automatic metallographic sample mounting press is designed for mounting small or irregular shape and those difficult to hold samples, which is former procedure of grinding and polishing. The inlaying operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallographic microscope. The machine can do heating and pressing automatically, unload the pressure and stop working when finished. With another press of the key, the machine automatically turns up the sample which can be taken away. Note: It is only adapted for the thermosetting materials (such as urea-formaldehyde molding powder and bakelite powder) with the temperature automatically regulated and controlled.

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 650W
Total Electric Power	1000W
Dimensions	380×350×420mm
Weight	50kg
