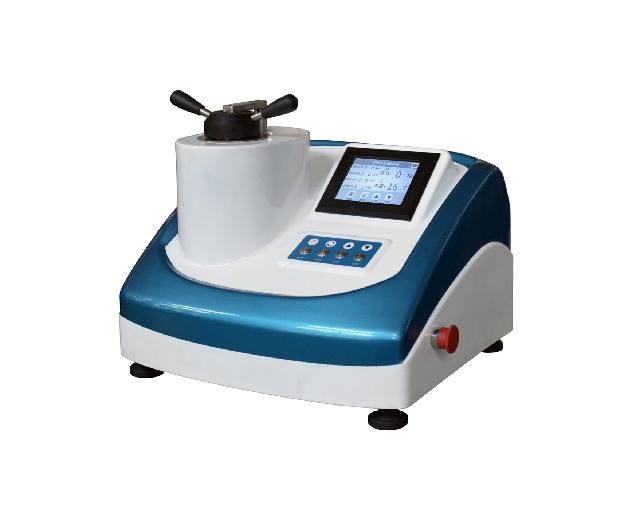

YZXQ-2A Automatic Specimen Mounting Press | Hydraulic, Touchscreen, Water-Cooling (CE/ISO)

YZXQ-2A: The Lab Partner That Mounts Specimens Perfectly – While You Focus on Analysis‌‌

Tired of cracked edges, loose samples, or uneven resin curing? The ‌YZXQ-2A Metallographic Specimen Mounting Press‌ is built for labs that demand ‌flawless, repeatable results‌ for delicate or irregular specimens like microchips, bone fragments, or aerospace alloys. With ‌one-touch automation‌, this machine handles heating, pressing, cooling, and unloading – all controlled by a user-friendly touchscreen. No more babysitting the process or wasting hours on manual adjustments. Just load your sample, press a button, and get a lab-ready mount in ‌30 seconds‌.

‌Key Benefits:‌

• ‌Fully Automated‌: Heating (0-180°C), hydraulic pressure (20MPa), and water-cooling – all in one cycle.
• ‌30-Second Mounts‌: Ideal for high-volume labs – process 50+ samples/day effortlessly.
• ‌Lab-Safe & Smart‌: Preset programs save parameters for urea-formaldehyde, bakelite, and other thermosetting materials.
• ‌No Supervision Needed‌: Walk away – the machine completes the cycle and alerts you when done.
• ‌Industrial Durability‌: 1.6kW heater and steel-reinforced frame handle 24/7 workloads.

Technical Specs Table ：

‌Parameter‌	‌YZXQ-2A Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	1.6kW, 220V, 50Hz
‌Pressure Range‌	0-20MPa (default: 12MPa)
‌Temperature Range‌	0-180°C (default: 150°C)
‌Cycle Time‌	30 seconds (heating + cooling)
‌Cooling Method‌	Automatic water-cooling
‌Dimensions‌	530×510×430mm (compact benchtop)
‌Certifications‌	CE, ISO9001
‌Best For‌	Microelectronics, biomed, aerospace, mining

Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2A automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. It adopts the touch screen, easy for operation and no need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, the parameter can be saved, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 1.6kw
System Pressure	0~20MPa (The default system pressure is 12MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 150℃.)
Holding Time	0min30s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	530×510×430mm
Weight	60kg
