‌XQ-1: Precision Mounting for Labs Tired of Loose or Damaged Samples

‌XQ-1: Precision Mounting for Labs Tired of Loose or Damaged Samples‌‌

The ‌XQ-1 Metallographic Mounting Press‌ solves the #1 problem in sample prep: holding ‌tiny, odd-shaped, or fragile specimens‌ (e.g., microelectronics, bone fragments, wire filaments) securely during grinding/polishing. With ‌digital temperature control‌ and three mold sizes, it ensures your samples stay perfectly embedded in epoxy or phenolic resin – no slippage, no cracks, just lab-ready consistency.

‌Key Benefits :‌

• ‌3 Mold Sizes‌: Choose Φ22mm, Φ30mm, or Φ45mm for diverse sample types.
• ‌Lab-Safe Design‌: Protective cover prevents accidental burns during heating.
• ‌Digital Precision‌: Adjust and monitor temperature (Room temperature -200°C) for optimal resin curing.
• ‌Compact & Lightweight‌: Weighs just ‌32kg‌ – fits on any benchtop.
• ‌Industrial-Grade Build‌: 650W heater handles 50+ mounts/day without overheating.

Technical Specs Table ‌

‌Parameter‌	‌XQ-1 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	650W, 220V, 50Hz
‌Temperature Range‌	Room temperature to 200°C
‌Dimensions‌	340×260×430mm (compact benchtop)
‌Weight‌	32kg
‌Certifications‌	CE, ISO9001
‌Best For‌	Small labs, electronics, biomed, mining

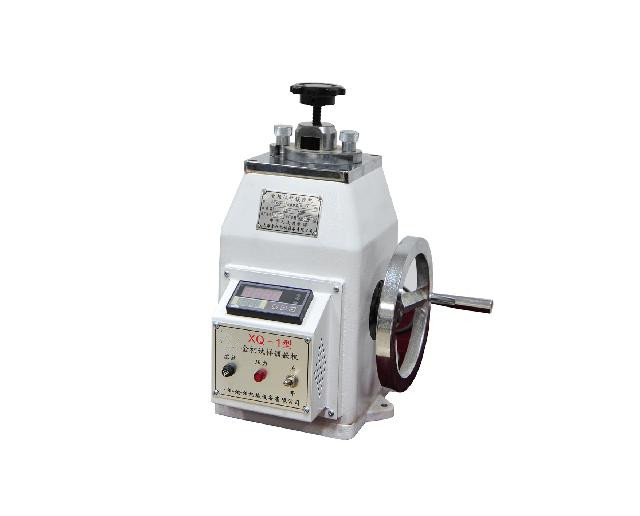

XQ-1 Metallographic sample mounting press is designed for mounting small or irregular shape and those difficult to hold samples. It is former procedure of grinding and polishing to use thermosetting plastics to inlay the sample. It is a mechanical mounting press and the heating is operated by digital temperature controller with stable and reliable performance. To operate more safely, it is equipped with a protective cover board. Therefore it is the ideal equipment for sample inlaying.

Main Parameters:

Mold Diameters	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	650W, 220V, 50Hz
Dimensions	340×260×430mm
Weight	32kg
