XQ-1 Hot Mounting Press Machine | Digital Temp Control for Small/Irregular Samples (CE/ISO)

‌XQ-1: The Hassle-Free Solution for Labs Tired of Unreliable Sample Mounting‌‌

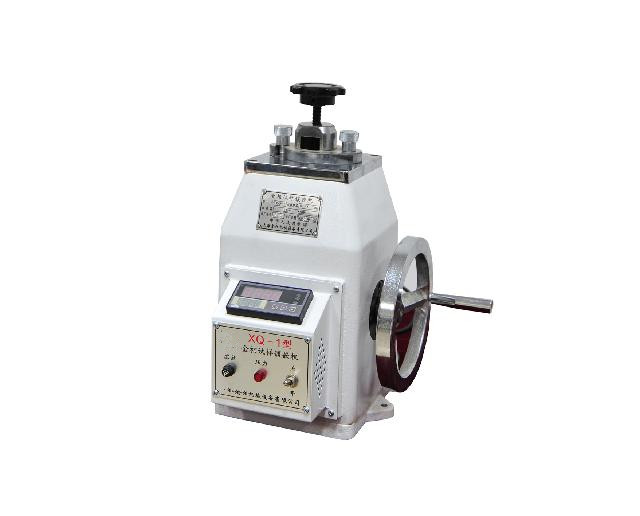

The ‌XQ-1 Hot Mounting Press Machine‌ is built for labs that need ‌consistent, secure embedding‌ of tricky samples like microchips, bone fragments, or irregular minerals. No more cracked edges or loose specimens during polishing! With its ‌digital temperature control‌ (room temperature-200°C), three mold sizes, and safety cover, this benchtop press ensures your samples stay locked in place using thermosetting resins. Compact, intuitive, and industrial-grade, it’s perfect for small labs and high-volume facilities alike.

‌Key Benefits :‌

• ‌Precision Heating‌: Digital controller ensures ‌even heat distribution‌ for flawless resin curing.
• ‌3 Mold Sizes‌: Choose Φ22mm, Φ30mm, or Φ45mm – ideal for electronics, biomed, or mining samples.
• ‌Lab-Safe Design‌: Protective cover prevents accidents during high-temperature operation.
• ‌Compact & Lightweight‌: Fits on any benchtop – weighs just ‌32kg‌.
• ‌Industrial Durability‌: 650W heater handles 50+ mounts/day without burnout.

Technical Specs Table :‌

‌Parameter‌	‌XQ-1 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	650W, 220V, 50Hz
‌Temperature Range‌	Room temperature to 200°C
‌Dimensions‌	340×260×430mm (compact benchtop)
‌Weight‌	32kg
‌Certifications‌	CE, ISO9001
‌Best For‌	Electronics, biomedical, geology, mining

XQ-1 Metallographic sample mounting press is designed for mounting small or irregular shape and those difficult to hold samples. It is former procedure of grinding and polishing to use thermosetting plastics to inlay the sample. It is a mechanical mounting press and the heating is operated by digital temperature controller with stable and reliable performance. To operate more safely, it is equipped with a protective cover board. Therefore it is the ideal equipment for sample inlaying.

Main Parameters:

Mold Diameters	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	650W, 220V, 50Hz
Dimensions	340×260×430mm
Weight	32kg
