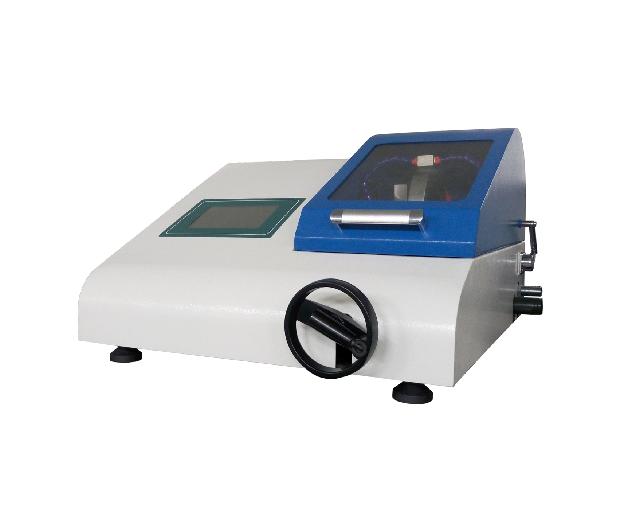

JMQ-30 Manual Metallographic Cutter | 1100W Precision Cutting for Metals, Ceramics, Bones | 300-3000r/min

metallography equipment
metallographic equipment
metallographic sample preparation
metallurgical polishing equipment
Product description: Industry-leading JMQ-30 metallographic cutter with 0.1mm step adjustment, dual clamping positions, and internal cooling system. Perfect for distortion-free cutting of metals, ceramics, biological samp
INQUIRY

JMQ-30 precise cutting machine is a singlechip control cutting machine. It’s suitable for the precision cutting of metal, electronics, ceramics, crystal, hard alloy, organic material, biological material (tooth, bone) and other materials without deformation. This machine has continuously cutting; high accuracy of positioning; wide range of speed regulating; strong cutting ability; internal circulation cooling system; can be preset feed speed; touching screen control and display; two position for clamping; with safety switch closed cutting room; and it is the ideal equipment to prepare high-quality specimens for the industrial and mining enterprises and institutes.
used metallographic polishing equipment
Main Parameters:

Feed speed	1-36mm/min (Adjustment of step is 0.1mm)
Cutting speed	300-3000r/min
Maximum cutting diameter	Φ30mm
Maximum travel	X axis 40mm; Y axis 170mm
Cutting disc size	Φ150×0.8×Φ20mm
Cutting power	1100W
Power supply	220V, 50Hz
Dimensions	620×650×400mm
Weight	125kg
