‌ZXQ-2: High-Quality Metallographic Mounting – Without the Lab Budget Sticker Shock‌‌

Need a reliable metallographic mounting press but tired of overpriced industrial machines? The ‌ZXQ-2‌ delivers ‌lab-grade precision at a workshop price‌. Perfect for universities, small foundries, or QC labs, this compact press automates heating, pressing, and cooling for ‌steel, aluminum, ceramics, or composites‌ – all with a single button. Swap molds (Φ22mm, Φ30mm, Φ45mm) in seconds, and enjoy ‌bubble-free mounts‌ for under $2,500. No more manual errors, no more waiting for expensive custom solutions.

‌Key Benefits :‌

• ‌Budget-Friendly‌: Costs ‌40% less‌ than industrial models – ideal for startups or schools.
• ‌Plug-and-Play Simplicity‌: 1-touch automation – heat, press, cool, and eject in 2 minutes.
• ‌Compact & Lightweight‌: Fits on small benchtops (380×350×420mm) and weighs only 50kg.
• ‌CE-Certified Safety‌: Built for daily use with auto-shutoff and temperature control.
• ‌Versatile Molds‌: Handle everything from microchips (Φ22mm) to mineral samples (Φ45mm).

Technical Specs Table ：‌

‌Parameter‌	‌ZXQ-2 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (included)
‌Heater Power‌	650W, 220V, 50Hz
‌Total Power Consumption‌	1000W
‌Temperature Range‌	0-180°C (auto-regulated)
‌Cycle Time‌	1-2 minutes (varies by material)
‌Dimensions‌	380×350×420mm (space-saving)
‌Weight‌	50kg
‌Certifications‌	CE
‌Price Range‌	‌$2,200-$2,800‌ (volume discounts available)

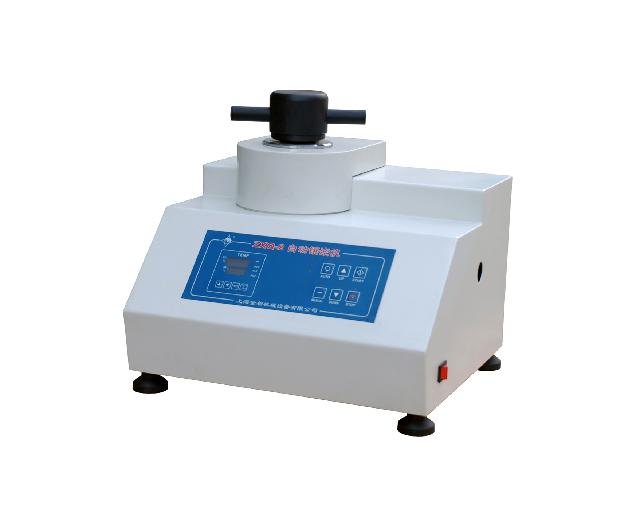

For metallographic and lithofacies sample analysis, inlaying is the first procedure in the sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or the samples need for automatic grinding and polishing, the inlaying is an important procedure before sample preparation. ZXQ-2 automatic metallographic sample mounting press is an advanced automatic sample inlaying machine, which controls the whole inlaying process by program and realizes one-touch operation of heating, pressurization, loading, cooling, unloading process. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. It has the characteristics of several molds, by replacing the steel die sets, free to choose Φ22mm, Φ30mm, Φ45mm size. Therefore it has wide applicability. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm
Heater Specification	220V, 650W
Total Electric Power	1000W
Dimensions	380×350×420mm
Weight	50kg
