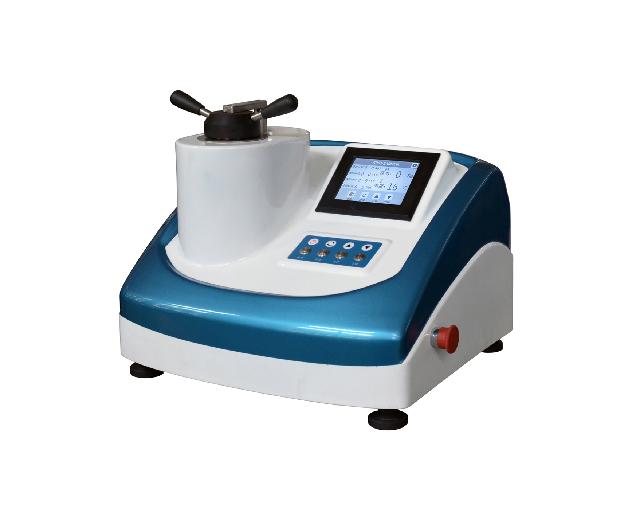

YZXQ-2A Hydraulic Metallographic Mounting Press | Touchscreen, 3-Size Molds, 20MPa Pressure (CE/ISO)



YZXQ-2A: The Lab Workhorse for Flawless Sample Mounting – Done in 30 Seconds‌‌

Tired of manual errors or slow, outdated presses? The ‌YZXQ-2A Automatic Mounting Press‌ is built for labs that need ‌precision and speed‌. With a ‌touchscreen interface‌ and 20MPa hydraulic pressure, this machine automates heating, pressing, and cooling for metals, ceramics, or composites – all in ‌30 seconds per sample‌. Perfect for QC teams, research labs, or universities handling ‌high-mix materials‌ like titanium alloys, brittle castings, or microelectronics.

‌Key Benefits :‌

• ‌Hydraulic Power‌: 12-20MPa pressure ensures ‌zero voids‌ even in porous or uneven samples.
• ‌Smart Automation‌: Save custom programs (temp, pressure, time) for repeatable results.
• ‌Touchscreen Simplicity‌: Set parameters in seconds – no training needed.
• ‌Rapid Cooling‌: Auto water-cooling lets you run back-to-back cycles without downtime.
• ‌Space-Saver‌: Compact design (530×510×430mm) fits crowded labs.

Technical Specs Table ‌

‌Parameter‌	‌YZXQ-2A Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	1.6kW, 220V, 50Hz
‌Pressure Range‌	0-20MPa (default: 12MPa)
‌Temperature Range‌	0-180°C (default: 150°C)
‌Cycle Time‌	30 seconds (fastest in class)
‌Cooling Method‌	Automatic water-cooling
‌Dimensions‌	530×510×430mm (compact footprint)
‌Weight‌	60kg
‌Certifications‌	CE, ISO9001
‌Best For‌	Metals, ceramics, polymers, composites

 Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2A automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. It adopts the touch screen, easy for operation and no need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, the parameter can be saved, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 1.6kw
System Pressure	0~20MPa (The default system pressure is 12MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 150℃.)
Holding Time	0min30s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	530×510×430mm
Weight	60kg
