YZXQ-3 Dual-Head Hot Mounting Press | 18MPa Hydraulic, Auto Water Cooling, 2 Molds at Once

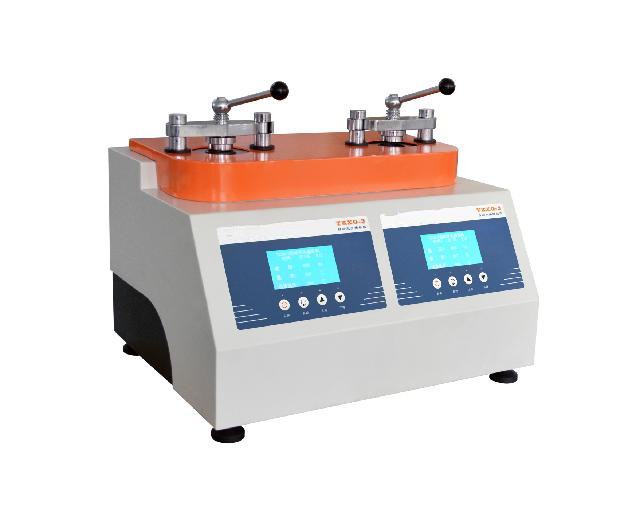

‌YZXQ-3: The Lab’s Dual-Head Powerhouse for High-Volume Sample Prep‌‌

Got a backlog of jagged titanium parts, microchips, or mineral samples? The ‌YZXQ-3 Dual-Head Hot Mounting Press‌ crushes bottlenecks with ‌two-in-one processing‌ – embed two samples at once (Φ22/30/45mm) in bakelite or urea-formaldehyde. Built for busy labs, this hydraulic beast delivers ‌18MPa pressure‌, ‌auto water cooling‌, and ‌one-button automation‌ to protect edges, eliminate voids, and slash cycle times. Just load both chambers, press start, and walk away.

‌Key Benefits :‌

• ‌Double Productivity‌: Process ‌two samples simultaneously‌ (e.g., Φ30mm + Φ45mm).
• ‌Hydraulic Muscle‌: 18MPa pressure ensures flawless edge retention for brittle alloys or porous ceramics.
• ‌Lab-Grade Cooling‌: Auto water cooling cuts cycle time to ‌1 minute per batch‌.
• ‌Zero Supervision‌: Program-controlled heating, pressing, cooling – no babysitting.
• ‌Plug-and-Produce‌: Ships pre-calibrated – start pressing in 10 minutes.

Technical Specs Table ‌

‌Parameter‌	‌YZXQ-3 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose two)
‌Heater Power‌	1.2kW (Φ22/30mm) / 2kW (Φ45mm)
‌System Pressure‌	0-18MPa (default 16MPa)
‌Temperature Range‌	0-180°C (default 130°C)
‌Cooling Method‌	Automatic water cooling
‌Cycle Time‌	1 minute (holding time per batch)
‌Dimensions‌	620×550×550mm (heavy-duty frame)
‌Weight‌	105kg (industrial-grade stability)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌5-8 days worldwide‌, 1 MOQ

Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-3 automatic double head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. No need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose two of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying at same time to meet the different requirements. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Certification: CE, ISO9001
Model Number: YZXQ-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose two)
Heater Specification	220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)
System Pressure	0~18MPa (The default system pressure is 16MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 130℃.)
Holding Time	1min00s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	620×550×550mm
Weight	105kg
