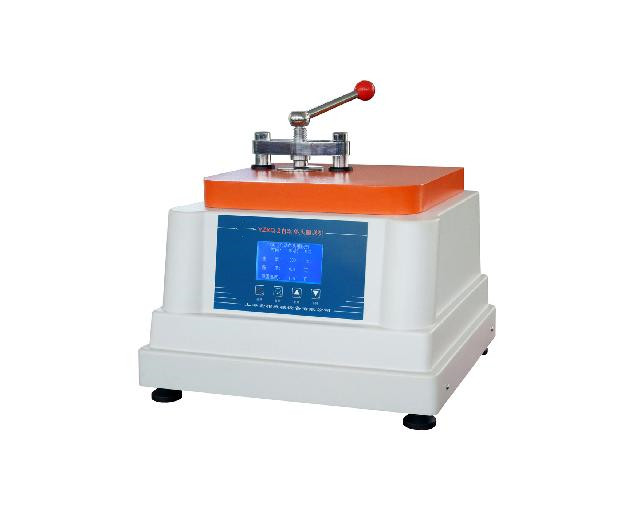

YZXQ-2 Hydraulic Metallographic Specimen Mounting Press | 18MPa Pressure, Auto Water Cooling (CE/ISO)

YZXQ-2: The Lab’s Hydraulic Powerhouse for Perfect Specimens‌‌

Need ‌consistent, high-pressure mounting‌ for delicate aerospace alloys or jagged geological samples? The ‌YZXQ-2 Hydraulic Mounting Press‌ crushes the competition with ‌18MPa oil pressure‌ and ‌auto water cooling‌. Designed for labs tired of manual errors, this machine embeds even the trickiest thermosetting materials (bakelite, urea-formaldehyde) in minutes. Just load your sample, press start, and let its ‌program-controlled cycles‌ handle heating, pressing, and cooling. Zero babysitting. Zero cracks.

‌Key Benefits :‌

• ‌Hydraulic Muscle‌: 18MPa pressure ensures flawless edge retention for brittle or porous samples.
• ‌Water Cooling‌: Faster cooling = higher throughput (1-minute cycles).
• ‌Lab-Grade Precision‌: Programmable temperature (0-180°C) and pressure for bakelite/urea-formaldehyde.
• ‌Flexible Molds‌: Swap Φ22/30/45mm dies for microchips, turbine blades, or ore fragments.
• ‌Plug-and-Produce‌: Pre-calibrated – unbox and start pressing in 10 minutes.

Technical Specs Table ‌

‌Parameter‌	‌YZXQ-2 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (interchangeable)
‌Heater Power‌	1.2kW (Φ22/30mm) / 2kW (Φ45mm)
‌System Pressure‌	0-18MPa (default 16MPa)
‌Temperature Range‌	0-180°C (default 130°C)
‌Cooling Method‌	Automatic water cooling
‌Cycle Time‌	1 minute (holding time)
‌Dimensions‌	520×480×520mm (robust build)
‌Weight‌	60kg (heavy-duty stability)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌5-8 days worldwide‌, 1 MOQ

  Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2 automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. No need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Certification: CE, ISO9001
Model Number: YZXQ-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)
System Pressure	0~18MPa (The default system pressure is 16MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 130℃.)
Holding Time	1min00s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	520×480×520mm
Weight	60kg
