YZXQ-2A Touch Screen Metallographic Mounting Press | 30-Second Cycles, 20MPa Hydraulic, ABS Cover (CE/ISO)

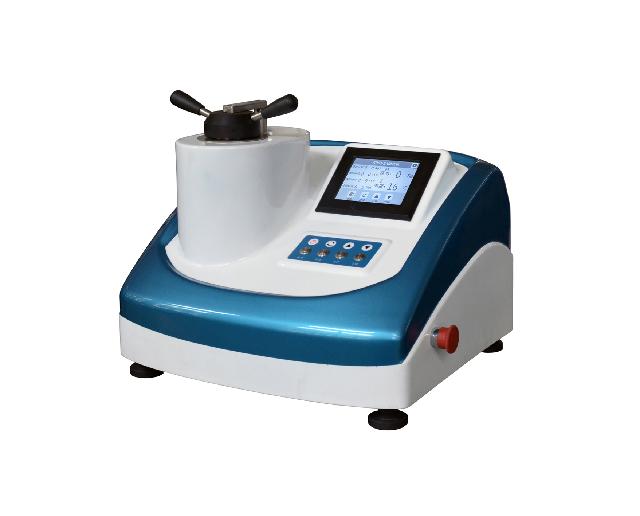

 YZXQ-2A: The Touchscreen Titan for Perfect Metallographic Mounts – 30 Seconds, Zero Errors‌

Say goodbye to clunky controls and manual guesswork. The ‌YZXQ-2A Touch Screen Mounting Press‌ is built for labs that demand ‌speed, precision, and durability‌. With a ‌user-friendly touchscreen‌ and rugged ABS cover, this machine handles titanium alloys, brittle ceramics, or microchips effortlessly. Just load your sample, press start, and let the 20MPa hydraulic system and auto water-cooling do the rest. Perfect for high-volume QC labs, R&D teams, or universities needing ‌flawless mounts in 30 seconds‌.

‌Key Benefits :‌

• ‌Touchscreen Simplicity‌: Save custom programs (temp, pressure, time) for repeatable results.
• ‌Industrial-Grade Hydraulics‌: 0-20MPa pressure crushes voids in porous or uneven samples.
• ‌ABS Protective Cover‌: Shields against lab dust, spills, and accidental bumps.
• ‌Fastest Cycle Time‌: 30 seconds per sample – process 100+ daily without fatigue.
• ‌Plug-and-Play‌: Ships pre-calibrated – unbox, plug in, and start mounting.

Technical Specs Table ‌

‌Parameter‌	‌YZXQ-2A Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	1.6kW, 220V, 50Hz
‌Pressure Range‌	0-20MPa (default: 12MPa)
‌Temperature Range‌	0-180°C (default: 150°C)
‌Cycle Time‌	30 seconds (industry-leading)
‌Cooling Method‌	Automatic water-cooling
‌Display‌	7-inch touchscreen with ABS cover
‌Dimensions‌	530×510×430mm (compact footprint)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌Free global delivery‌ in 5-8 days

 Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2A automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. It adopts the touch screen, easy for operation and no need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, the parameter can be saved, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Certification: CE, ISO9001
Model Number: YZXQ-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 1.6kw
System Pressure	0~20MPa (The default system pressure is 12MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 150℃.)
Holding Time	0min30s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	530×510×430mm
Weight	60kg
