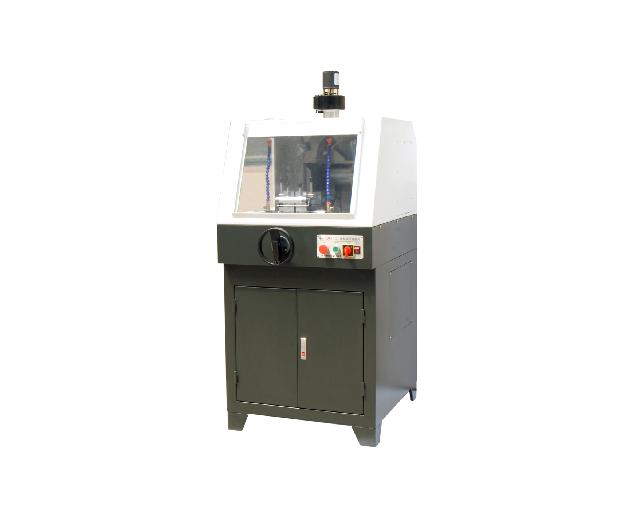

Manual Metallographic Cutting Machine with Quick Clamping Device

The QG-5 Manual Metallographic Cutter is specifically designed for cutting cylinder and irregular samples like multi-angular shapes and convex plates. With CE & ISO9001 certification, this machine guarantees safety and precision for your lab work

• Quick Clamping & Safety‌：Double-covers fully enclosed structure prevents accidents.
• ‌Controlled Cutting Speed‌：Adjustable feeding speed for different materials.
• ‌Anti-Overheating System‌：Strong cooling system protects sample texture.
• ‌Easy to Maintain‌：Long-lasting blade life and low maintenance cost.

QG-5 metallographic sample cutting machine is mainly used for cutting cylinder and irregular samples such as multi-angular shape and convex plate etc. This machine adopts double-covers totally closed structure and double quick clamp devices, which can guarantee the absolute safety of cutting sample. It is equipped with front and back board, and the feeding speed is controllable. In order to avoid the sample burning the material texture because of over-heating in cutting, it is equipped with strong cooling system, which can avoid burning the surface of the sample. It can increase the cutting section and improve the availability of the cutting disc. The machine has the advantages of easy to use and maintain, which is the excellent equipment of cutting irregular samples.

Certification: CE, ISO9001
Model Number: QG-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Maximum Cutting Section	100×120mm
Rotating Speed	2800r/min
Cutting Disc Size	Φ380×2.8×Φ32mm
Electromotor	Y112M-2, 4kw, 380V, 50Hz
Dimensions	850×760×1400mm
Weight	340kg

About how to use the QG-5 Manual Metallographic Cutte,please visit :

How to Use the QG-5 Manual Metallographic Cutter for Irregular Samples: A Step-by-Step Guide
