Manual Lithofacies Sample Cutting Machine with Diamond Cutting Disc

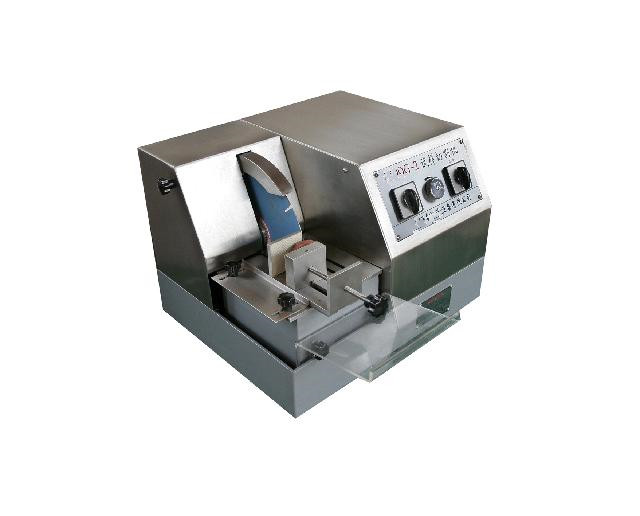

The QG-2 Manual Metallographic Cutter is a cost-effective solution for cutting small samples (up to 65x65mm) in metallographic preparation. Designed for labs with limited space, this machine adopts a fully-enclosed double-cover structure and quick clamp device to ensure operator safety. With CE/ISO9001 certification and a stainless steel body, it’s built to last for years with minimal maintenance.

During the metallographic sample preparation, cutting is the first working procedure. QG-2 is suitable for the general lithofacies materials. In order to ensure the absolute safety, it adopts totally-enclosed double cover structure and quick clamp device, also it is equipped with cooling water tank for the recycling use of cooling liquid. The shell, axle sleeve, jaw, working platform and other main parts are made of stainless steel, which can endure long time and is easy to maintain. Therefore it is ideal equipment for sample cutting.

Certification: CE, ISO9001
Model Number: QG-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 100 SETS / MONTH

Main Parameters:

Maximum Cutting Section	65×65mm
Rotating Speed	1400r/min
Diamond Cutting Disc Size	Φ250×2×Φ32mm
Electromotor	AS8034, 1.1kw, 380V, 50Hz
Dimensions	490×600×330mm
Weight	45kg
