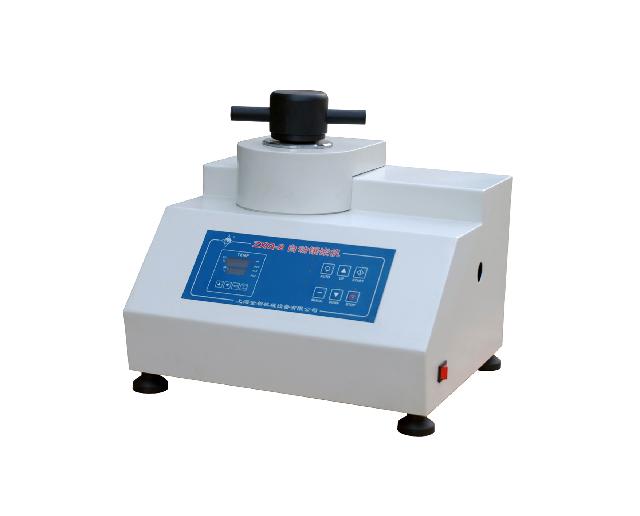

ZXQ-2 Automatic Metallographic Mounting Press | 3 Mold Sizes, 1-Touch Operation, CE/ISO

ZXQ-2: The “Set It and Forget It” Press for Flawless Metallographic Samples‌‌

Tired of babysitting manual presses or dealing with cracked edges on porous alloys? The ‌ZXQ-2 Metallographic Mounting Press‌ handles the fussiest samples – think microelectronic chips, jagged ceramics, or brittle composites – with ‌one-touch automation‌. Designed for metallography labs, QC teams, and research facilities, this press locks samples into bakelite or urea-formaldehyde with precision. Load your sample, press start, and let the ZXQ-2 handle heating (650W), pressing, and cooling. Perfect for ASTM-compliant prep or high-volume industrial analysis.

‌Key Benefits :‌

• ‌Full Automation‌: 1 button → perfect inlays every time. No skill required.
• ‌3 Sizes, Zero Hassle‌: Swap molds (Φ22/30/45mm) for micro-samples or bulky geology cores.
• ‌Lab-Tested Stability‌: Program-controlled cycles eliminate human error.
• ‌Space-Saving‌: 380×350×420mm fits cramped labs.
• ‌Thermosetting Pro‌: Optimized for bakelite/urea-formaldehyde (no epoxy).

Technical Specs Table ‌

‌Parameter‌	‌ZXQ-2 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (swap freely)
‌Heater Power‌	650W, 220V, 50Hz
‌Total Power‌	1000W (energy-efficient)
‌Cycle Control‌	Full automation (heat/press/cool)
‌Temperature Control‌	Programmable (thermosetting only)
‌Dimensions‌	380×350×420mm (bench-friendly)
‌Weight‌	50kg (stable, vibration-free)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌5-8 days worldwide‌, 1 MOQ

   For metallographic and lithofacies sample analysis, inlaying is the first procedure in the sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or the samples need for automatic grinding and polishing, the inlaying is an important procedure before sample preparation. ZXQ-2 automatic metallographic sample mounting press is an advanced automatic sample inlaying machine, which controls the whole inlaying process by program and realizes one-touch operation of heating, pressurization, loading, cooling, unloading process. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. It has the characteristics of several molds, by replacing the steel die sets, free to choose Φ22mm, Φ30mm, Φ45mm size. Therefore it has wide applicability. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Certification: CE, ISO9001
Model Number: ZXQ-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm
Heater Specification	220V, 650W
Total Electric Power	1000W
Dimensions	380×350×420mm
Weight	50kg
