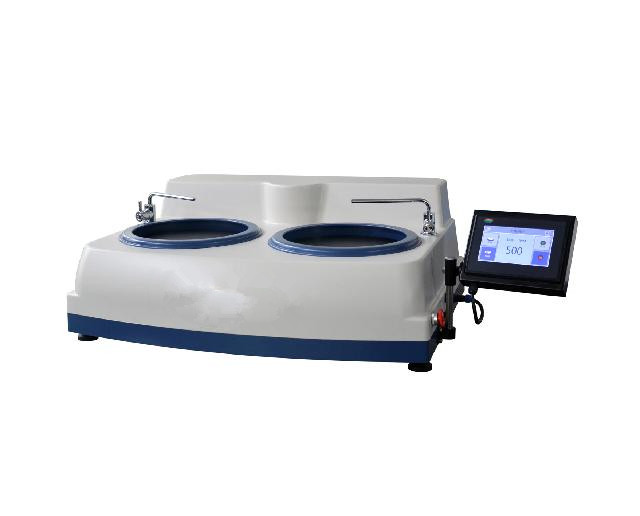

YMP-2-250 Metallographic Sample Grinding and Polishing Machine

YMP-2-300/250 Dual-Disc Metallographic Grinder – Industrial Power, Lab Precision‌

‌Need to ‌grind steel‌ at 100 RPM and ‌polish titanium‌ at 1000 RPM – at the same time? The ‌YMP-2-300/250‌ combines ‌two independent discs‌ (300mm/250mm) with ‌stepless speed control‌, an ‌LCD touchscreen‌, and ‌magnetic disc swaps‌. Perfect for aerospace labs, foundries, and universities needing to prep 50+ samples daily. CE/ISO certified, 220V-ready, and shipped globally in ‌5-8 days‌.

---

‌Key Features ‌

• ‌Dual-Disc Dominance‌: Run 300mm grinding + 250mm polishing simultaneously – double your output.
• ‌Smart Touchscreen‌: Set RPM (100-1000), track runtime, and save presets for repeat workflows.
• ‌Magnetic Disc System‌: Swap abrasives in 10 seconds – no screws, no residue (Teflon coating).
• ‌220V Brushless Motor‌: 1.1kW power – silent, maintenance-free, and built for 12-hour shifts.
• ‌Lab-Grade Durability‌: Stainless steel discs + ABS corrosion-proof base – survives acids, coolants, and heavy use.

---

‌Technical Specs ‌

Parameter	Details
Disc Diameter	300mm (Grind) / 250mm (Polish)
Speed Range	100–1000 RPM (stepless or 4 fixed)
Motor	DC Brushless, 220V, 1.1kW (Zero downtime)
Dimensions	725×900×360mm (Heavy-duty footprint)
Weight	95kg (Ultra-stable for precision)
Noise Level	≤68dB (Quieter than a dishwasher)
Certifications	CE, ISO9001 (Global compliance)

---

‌Why This Machine Wins‌

• ‌No Bottlenecks‌: Two discs = grind and polish in one machine.
• ‌Future-Proof‌: LCD presets adapt to new materials (e.g., composites, ceramics).
• ‌Heavy-Duty Build‌: 95kg chassis eliminates vibrations during high-RPM polishing.

YMP-2-300/250 Metallographic Sample Grinding and Polishing Machine

In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is controlled by single chip microcomputer. With ABS sewage collection plate and cover it is the latest product with a new and beautiful appearance. With grinding disc stepless speed regulation and clockwise or anticlockwise direction, it ensures the smooth of the sample. It adopts high definition LCD touch screen, clear to display and easy to use. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The grinding disc is stainless steel which makes firm and steady. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience. With magnetic grinding disc design, it supports for fast disc replacing system, the plate is Teflon painted which makes no residue of changing polishing cloth. The size of the disc is larger than the same products in the market, adapted to various materials preparation of test samples. The two discs operate independently. With low noise, convenient operation, beautiful appearance, safe use, it is the ideal equipment for metallographic sample preparation.

Main Parameters:

Grinding and Polishing Disc Diameter	300mm or 254mm
Abrasive Paper Diameter	300mm or 250mm
Rotating Speed	100～1000r/min, stepless; Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Rotating Direction	Clockwise or Anticlockwise
Electromotor	DC brushless motor, 220V, 1.1kw
Dimensions	725×900×360mm
Weight	95kg
