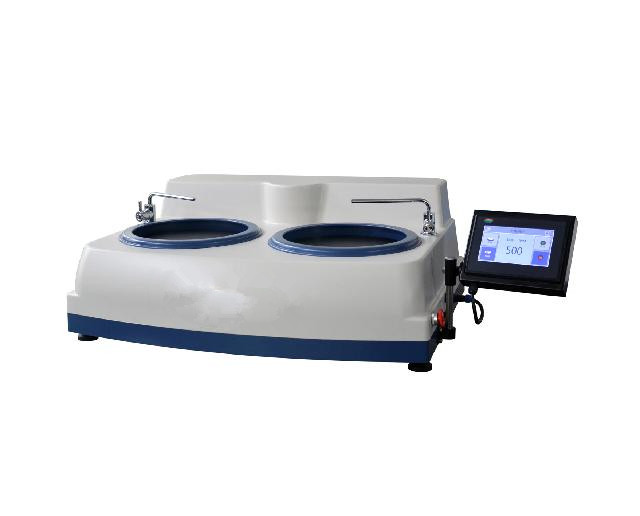

YMP-2-300 Metallographic Sample Grinding and Polishing Machine

YMP-2-300/250 Dual-Disc Metallographic Polisher – Bigger Discs, Smarter Workflows‌
Need to prep 50+ steel, ceramic, or alloy samples daily? The ‌YMP-2-300/250‌ combines ‌300mm dual discs‌, ‌stepless speed (100-1000 RPM)‌, and ‌magnetic quick-swap‌ to crush deadlines. Designed for automotive QA labs, aerospace R&D, and industrial foundries – control both discs independently via ‌LCD touchscreen‌, switch directions (↻/↺), and let the ‌1.1kW DC motor‌ handle 12-hour shifts. CE/ISO certified, 95kg stable, and ‌5-day shipping‌.

---

‌Key Features ‌

• ‌300mm Monster Discs‌: 20% larger than competitors – process 8+ samples per disc.
• ‌LCD Touchscreen Control‌: Set RPM, timers, and direction in 3 taps (no manuals needed).
• ‌Magnetic Disc Swap‌: Change abrasives in 15 seconds – Teflon coating leaves zero residue.
• ‌1.1kW DC Beast‌: 220V power, brushless motor – 50% more torque than standard polishers.
• ‌Dual-Disc Independence‌: Run grinding (Disc 1) and polishing (Disc 2) simultaneously.

---

‌Technical Specs ‌

Parameter	Details
Disc Diameter	300mm / 254mm (Industry-leading size)
Speed Range	100–1000 RPM (stepless or 4 fixed)
Motor	DC Brushless, 220V, 1.1kW (High torque)
Dimensions	725×900×360mm (Heavy-duty footprint)
Weight	95kg (Rock-solid stability)
Noise Level	≤68dB (Quieter than a blender)
Certifications	CE, ISO9001 (Global compliance)

---

‌Why This Machine Wins‌

• ‌Double Productivity‌: Two discs = grind and polish in parallel.
• ‌Zero Residue‌: Teflon-coated plates – no cross-contamination between samples.
• ‌Factory-Ready‌: 1.1kW motor handles titanium, Inconel, and ceramics all day.

YMP-2-300/250 Metallographic Sample Grinding and Polishing Machine

In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is controlled by single chip microcomputer. With ABS sewage collection plate and cover it is the latest product with a new and beautiful appearance. With grinding disc stepless speed regulation and clockwise or anticlockwise direction, it ensures the smooth of the sample. It adopts high definition LCD touch screen, clear to display and easy to use. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The grinding disc is stainless steel which makes firm and steady. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience. With magnetic grinding disc design, it supports for fast disc replacing system, the plate is Teflon painted which makes no residue of changing polishing cloth. The size of the disc is larger than the same products in the market, adapted to various materials preparation of test samples. The two discs operate independently. With low noise, convenient operation, beautiful appearance, safe use, it is the ideal equipment for metallographic sample preparation.

Main Parameters:

Grinding and Polishing Disc Diameter	300mm or 254mm
Abrasive Paper Diameter	300mm or 250mm
Rotating Speed	100～1000r/min, stepless; Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Rotating Direction	Clockwise or Anticlockwise
Electromotor	DC brushless motor, 220V, 1.1kw
Dimensions	725×900×360mm
Weight	95kg
