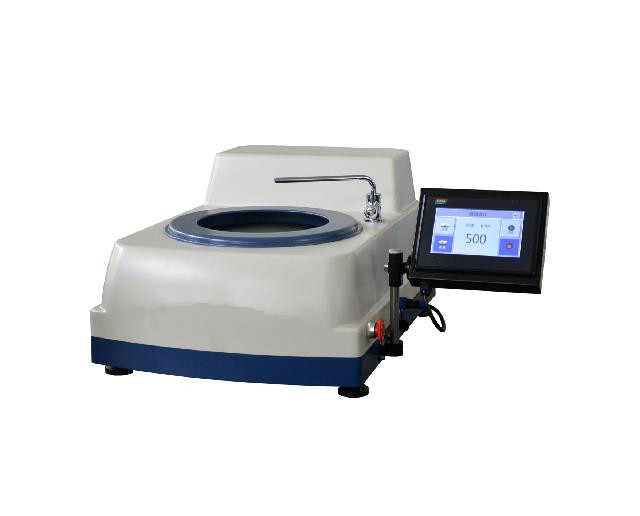

YMP-1-300 Metallographic Sample Grinding and Polishing Machine

YMP-1-300/250 Metallographic Grinder – Compact Power for Precision Labs‌
‌Tired of bulky, slow machines? The ‌YMP-1-300/250‌ packs ‌300mm grinding power‌, ‌stepless speed (100–1000 RPM)‌, and ‌one-touch LCD controls‌ into a lab-friendly 57kg frame. Perfect for QC labs, universities, and small factories – swap discs in seconds with the ‌magnetic Teflon system‌, reverse rotation (↻/↺) for tricky alloys, and let the ‌1.1kW DC motor‌ work 12-hour shifts. CE/ISO certified, 68dB quiet, and ships in ‌5–8 days‌.

---

‌Key Features ‌

• ‌300mm Dominance‌: 20% larger disc vs. competitors – fit 6+ samples at once.
• ‌LCD Touchscreen‌: Set RPM, timers, and direction in 2 taps (no manual needed).
• ‌Magnetic Disc Swap‌: Change abrasives in 10 seconds – Teflon coating = zero residue.
• ‌1.1kW DC Muscle‌: 220V brushless motor – 30% more torque than AC models.
• ‌Space-Saver‌: 725×500×360mm footprint – fits cramped labs or mobile carts.

---

‌Technical Specs ‌

Parameter	Details
Disc Diameter	300mm / 254mm (Industry-leading size)
Speed Range	100–1000 RPM (stepless or 4 fixed)
Motor	DC Brushless, 220V, 1.1kW (High torque)
Dimensions	725×500×360mm (Compact for tight labs)
Weight	57kg (Easy to relocate)
Noise Level	≤68dB (Library-quiet operation)
Certifications	CE, ISO9001 (Globally compliant)

---

‌Why This Machine Wins‌

• ‌No Cross-Contamination‌: Teflon-coated plate prevents abrasive residue buildup.
• ‌Lab-Friendly Design‌: Lightweight, compact, and quiet – ideal for small spaces.
• ‌Future-Proof‌: Stepless RPM adapts to new materials (e.g., composites, 3D-printed alloys).

YMP-1-300/250 Metallographic Sample Grinding and Polishing Machine

In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is controlled by single chip microcomputer. With ABS sewage collection plate and cover it is the latest product with a new and beautiful appearance. With grinding disc stepless speed regulation and clockwise or anticlockwise direction, it ensures the smooth of the sample. It adopts high definition LCD touch screen, clear to display and easy to use. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The grinding disc is stainless steel which makes firm and steady. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience. With magnetic grinding disc design, it supports for fast disc replacing system, the plate is Teflon painted which makes no residue of changing polishing cloth. The size of the disc is larger than the same products in the market, adapted to various materials preparation of test samples. With low noise, convenient operation, beautiful appearance, safe use, it is the ideal equipment for metallographic sample preparation.

Main Parameters:

Grinding and Polishing Disc Diameter	300mm or 254mm
Abrasive Paper Diameter	300mm or 250mm
Rotating Speed	100～1000r/min, stepless; Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Rotating Direction	Clockwise or Anticlockwise
Electromotor	DC brushless motor, 220V, 1.1kw
Dimensions	725×500×360mm
Weight	57kg
