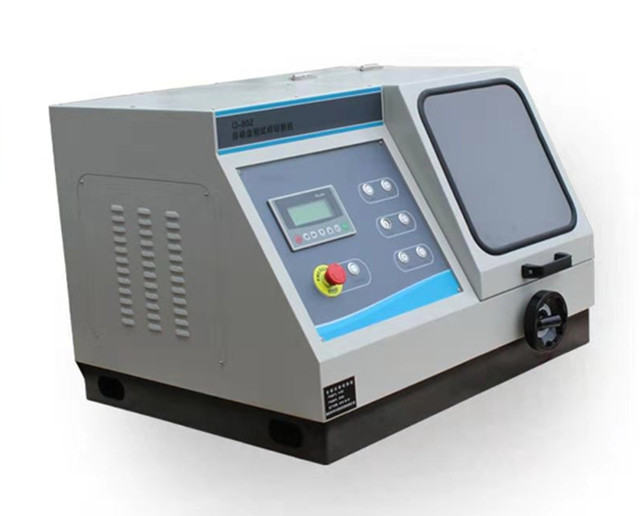

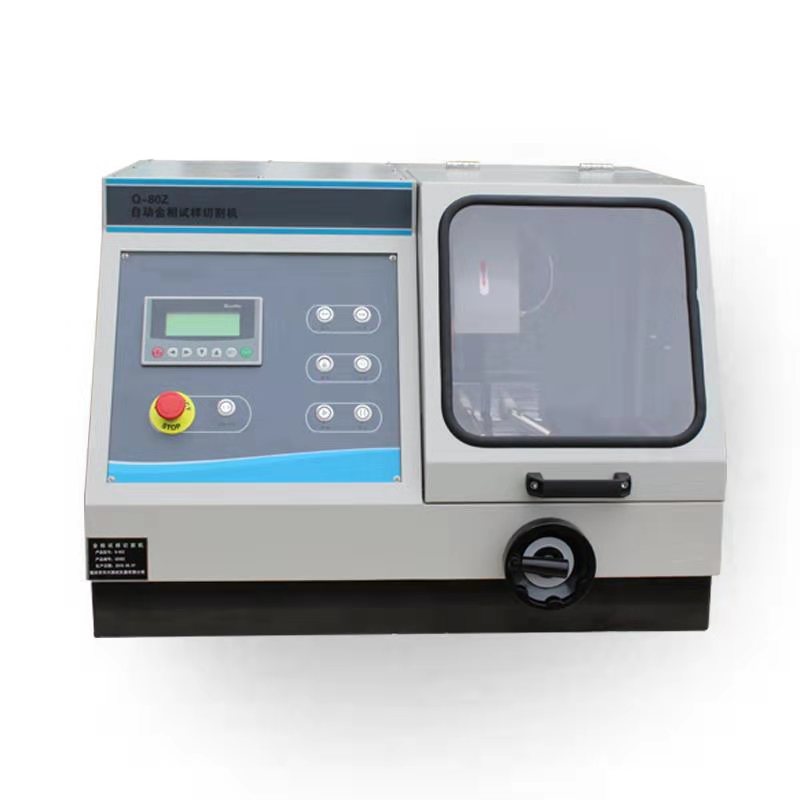

Q-80Z metallographic specimen cutting machine

metallographic cutting machine price，metallography cutting machine，metallographic specimen cutting machine，metallographic sample cutting machine，metallographic cut-off machine

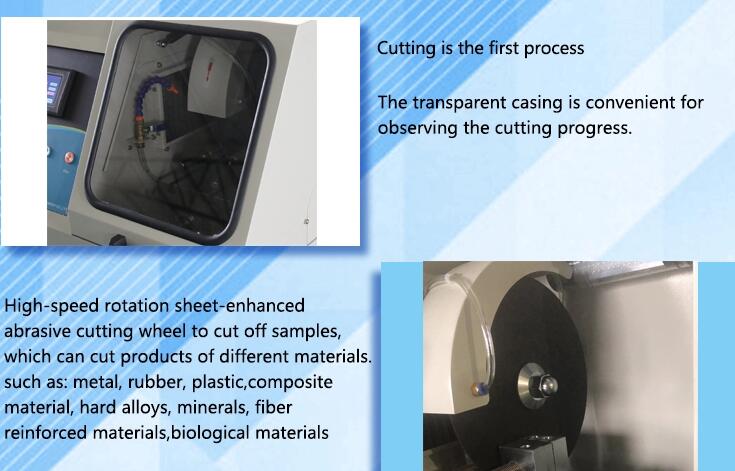

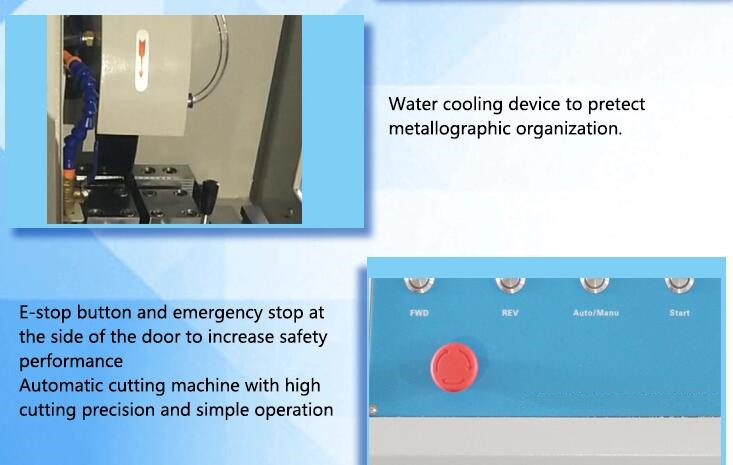

Q-80Z metallographic specimen cutting machine can cut round workpiece with the diameter of 80mm or less,you can also cut rectangular specimens with Height under 80mm,Depth under 200mm. The machine cools the sample through a self-circulating cooling system to prevent burning the structure of the specimen from overheating during the cutting process. The machine can also cut different samples by setting the cutting speed, thus improving the quality of the cutting sample. The machine is divided into manual cutting and automatic cutting. Large volume of the cutting room, more convenient for cutting use,it is one of the necessary sample preparation equipment of the tertiary institutions, factories and enterprises.

Power Supply	Three-phase four-wire（380v 、50Hz）
Spindle Rotation Speed	2100r/min
Grinding wheel Specification	350mm×2.5mm×32mm
Max. Cutting Capacity	φ80mm
Motor	Three-Phase 380 50HZ  3KW
Dimension of  Cutting Table	280*310mm
Cutting mode	Manual/Automatic
Dimensions	900*790*600mm
Weight	210KG
