Q-100B Automatic metallography cutting machine

metallographic cut-off machine，metallographic sample cutting machine，metallographic specimen cutting machine，metallography cutting machine，metallographic cutting machine price

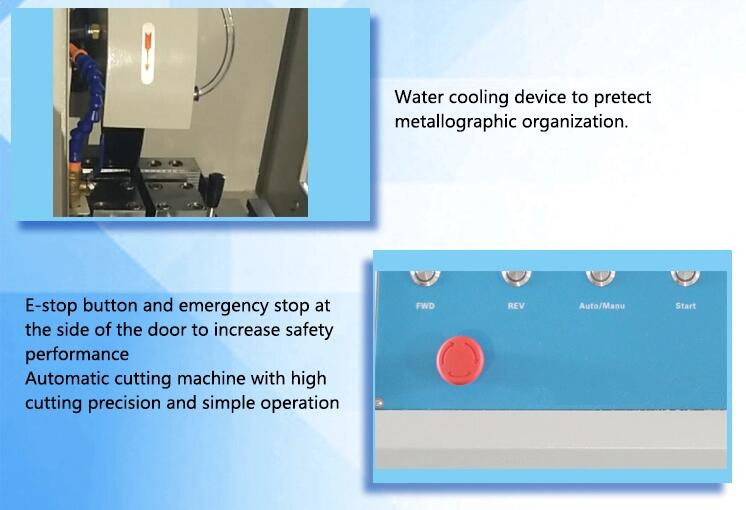

Q-100B Automatic metallography cutting machine an cut round workpiece with the diameter of 100mm or less,you can also cut rectangular specimens with the height under 100mm,Depth under 200mm. The machine cools the sample through a self-circulating cooling system to prevent burning the structure of the specimen from overheating during the cutting process. The machine can also cut different samples by setting the cutting speed, thus improving the quality of the cutting sample. The machine is divided into manual cutting and automatic cutting. Large volume of the cutting room, more convenient for cutting use,it is one of the necessary sample preparation equipment of the tertiary institutions, factories and enterprises.

Technical Parameters

Power Supplu	Three-Phase four-wire（380v 、50Hz）
Spindle Rotation Speed	2100r/min
Grinding Wheel Specification	350mm×2.5mm×32mm
Max. Cutting Capacity	φ100mm
Cutting mode	Manual/Automatic
Motor	Three-Phase380 50HZ  3KW
Dimension of Cutting Table	280×310mm
Dimensions	900*790*600mm
Weight	240KG
