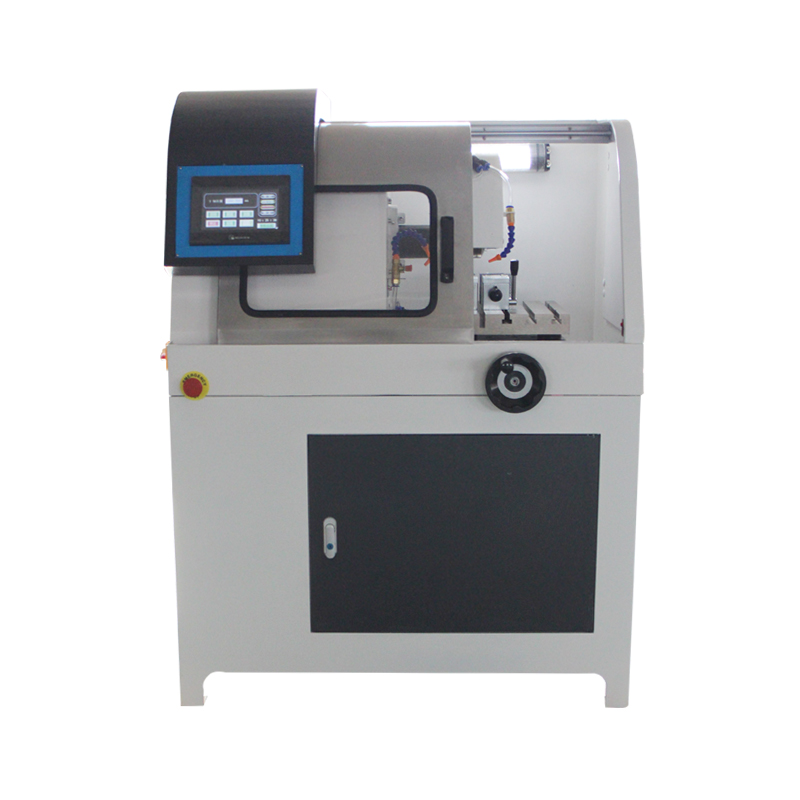

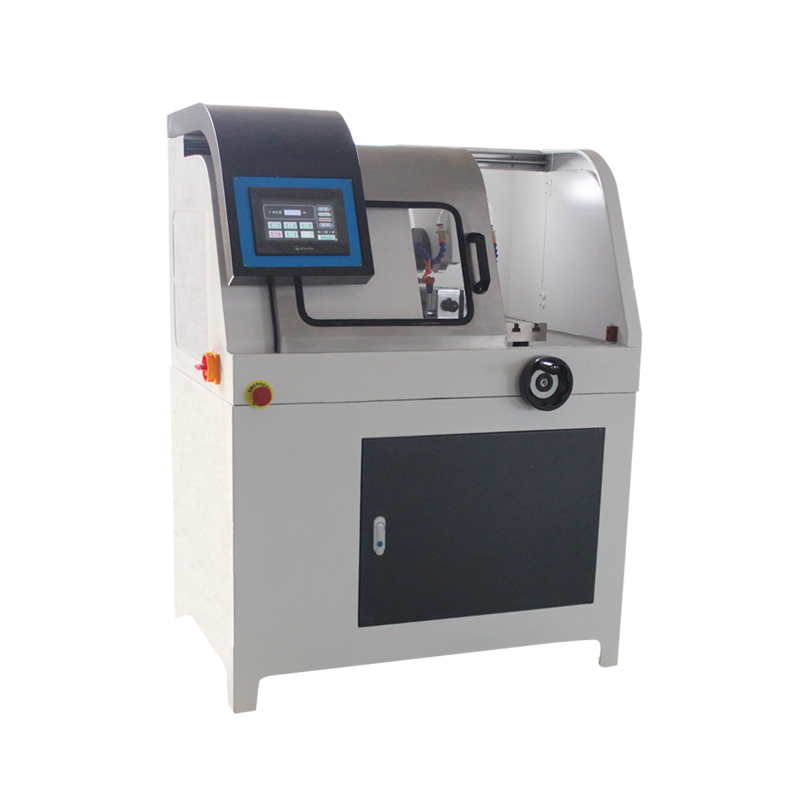

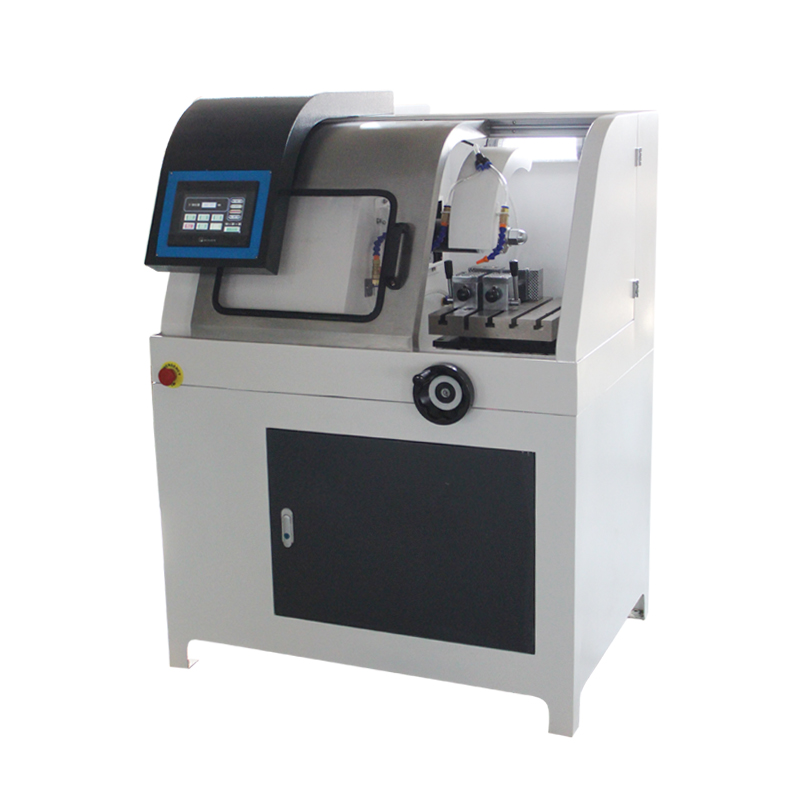

Metal-100 metallographic cutting machine

Metal-100 metallographic cutting machine

metallographic cutting machine
metallographic cutting machine price
metallographic sample cutting machine
metallographic specimen cutting machine
Product description: The metallographic cutting machine is composed of a fuselage, an electric control box, a cutting chamber, a motor, a cooling system, a cutting wheel etc. The cutting machine can cut circular workpiece
INQUIRY

metallographic cutting machine,metallographic cutting machine price,metallographic sample cutting machine,metallographic specimen cutting machine

First、Product description：

The metallographic cutting machine is composed of a fuselage, an electric control box, a cutting chamber, a motor, a cooling system, a cutting wheel etc. The cutting machine can cut circular workpieces with a diameter less than 100mm, and can also cut rectangular specimens with a height of 100mm and a depth of less than 200mm.

Second、Features and Application:

The machine cools the specimen through a cooling system to prevent the specimen from overheating and burning during the cutting processing. The machine can also set the cutting speed while cutting different materials, thus improving the quality of the cutting samples. The machine has two modes, manual and automatic. It is one of the metallographic test equipments of colleges and universities.

Third、Technical Parameters:

Model	Metal-100
Max. cutting Dia.	100mm
Dimension of working table	280*310mm
Cutting wheel specification	3502.532mm
Claming Jig Specification	Jig at left and right side, cutter at center
Cutting mode	Manual / Automatic
Reset Mode	Automatic
Rotating speed	2100r/min
Input Voltage	Three phases 380V,50Hz
Cooling system	Water cooling 3 Channels
Power	3.0KW
Weight	246KG
Tank Capacity	50L
Dimension	10008001400mm
Special artifacts can be customized
Disc jig, Rack jig, Universal jig
