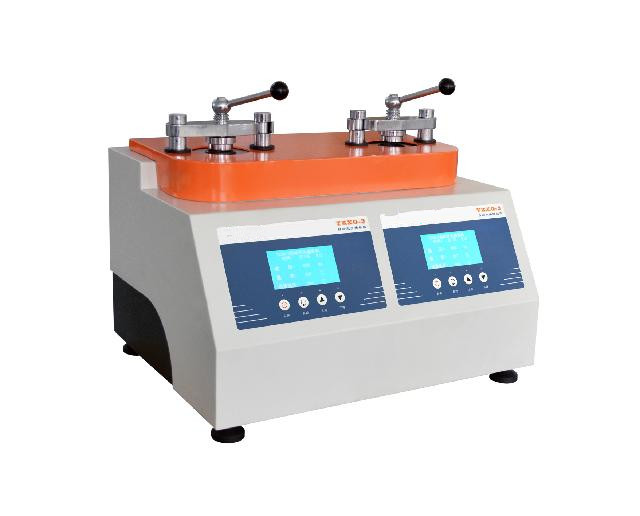

YZXQ-3 Double Head Sample Mounting Press | Hydraulic, Dual-Mold, 2-Specimen Automation (CE/ISO)

YZXQ-3: Double Your Lab’s Mounting Speed Without Hiring Extra Staff‌‌

The ‌YZXQ-3 Double Head Sample Mounting Press‌ is a game-changer for labs drowning in sample prep work. Need to mount ‌tiny circuit boards‌ AND ‌chunky mineral specimens‌ in the same batch? This machine lets you process ‌two different samples at once‌ using separate molds (Φ22mm, Φ30mm, or Φ45mm). With ‌one-touch automation‌, it handles heating (up to 180°C), hydraulic pressure (18MPa), and water-cooling – perfect for labs that juggle mixed sample sizes daily. Save 50% time, slash labor costs, and say goodbye to manual errors.

‌Key Benefits :‌

• ‌Dual-Mold Efficiency‌: Mount ‌two specimens simultaneously‌ – ideal for mixed batches or high-volume workflows.
• ‌Smart Automation‌: Programmable cycles with saved settings for bakelite, urea-formaldehyde, and other resins.
• ‌Industrial Power‌: 2kW heater (Φ45mm) and 1.2kW (Φ22/30mm) ensure fast, bubble-free curing.
• ‌Lab-Safe Design‌: Walk away – the machine auto-completes cycles and alerts you when done.
• ‌Heavy-Duty Build‌: 105kg steel frame withstands 24/7 use in mining, electronics, or biomed labs.

Technical Specs Table ：‌

‌Parameter‌	‌YZXQ-3 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose two)
‌Heater Power‌	2kW (Φ45mm), 1.2kW (Φ22/30mm)
‌Pressure Range‌	0-18MPa (default: 16MPa)
‌Temperature Range‌	0-180°C (default: 130°C)
‌Cycle Time‌	1 minute (heating + cooling)
‌Cooling Method‌	Automatic water-cooling
‌Dimensions‌	620×550×550mm (heavy-duty benchtop)
‌Weight‌	105kg
‌Certifications‌	CE, ISO9001
‌Best For‌	High-volume labs, mixed sample sizes

Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-3 automatic double head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. No need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose two of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying at same time to meet the different requirements. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose two)
Heater Specification	220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)
System Pressure	0~18MPa (The default system pressure is 16MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 130℃.)
Holding Time	1min00s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	620×550×550mm
Weight	105kg
