YZXQ-2 Best Metallographic Mounting Press | Hydraulic, Automated, 3-Size Molds (CE/ISO)

 ‌YZXQ-2: The Gold Standard for Metallographic Mounting – Perfect Samples, Zero Guesswork‌

‌Intro Paragraph:‌
If your lab demands ‌consistent, bubble-free mounts‌ for aerospace alloys, microelectronics, or geological samples, the ‌YZXQ-2‌ is your answer. Designed for precision, this press combines ‌16MPa hydraulic force‌ and ‌programmable automation‌ to handle even the trickiest specimens – think razor-thin steel shavings or porous castings. With ‌one-touch operation‌, it heats (up to 180°C), presses, and cools samples in ‌1 minute flat‌, slashing prep time by 70%. Whether you’re a high-volume QC lab or a research institute, this machine guarantees ‌lab-grade results every time‌.

‌Key Benefits :‌

• ‌Hydraulic Powerhouse‌: 16MPa default pressure ensures ‌no voids or cracks‌ in hardened metals or composites.
• ‌Smart Automation‌: Walk away – the machine auto-completes cycles and alerts you when done.
• ‌Mold Versatility‌: Swap between Φ22mm, Φ30mm, Φ45mm molds in seconds (all included).
• ‌Industrial Cooling‌: Water-cooling system prevents overheating during back-to-back runs.
• ‌Heavy-Duty Build‌: 60kg steel frame withstands 24/7 use in harsh environments.

Technical Specs Table ‌

‌Parameter‌	‌YZXQ-2 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	2kW (Φ45mm), 1.2kW (Φ22/30mm)
‌Pressure Range‌	0-18MPa (default: 16MPa)
‌Temperature Range‌	0-180°C (default: 130°C)
‌Cycle Time‌	1 minute (heating + cooling)
‌Cooling Method‌	Automatic water-cooling
‌Dimensions‌	520×480×520mm (industrial benchtop)
‌Weight‌	60kg
‌Certifications‌	CE, ISO9001
‌Best For‌	Aerospace, automotive, R&D labs

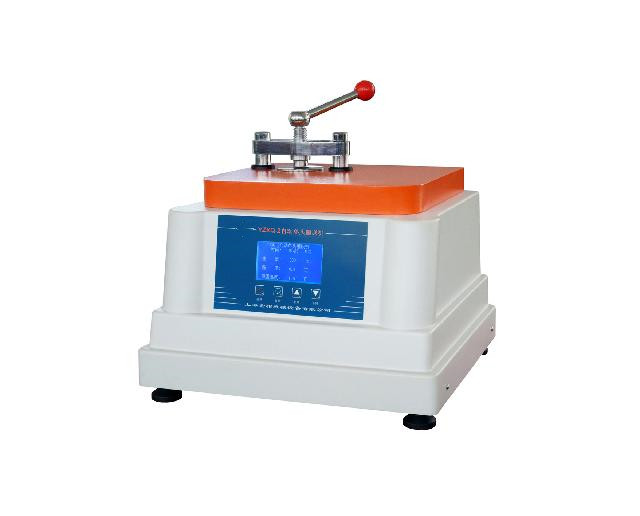

 Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2 automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. No need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)
System Pressure	0~18MPa (The default system pressure is 16MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 130℃.)
Holding Time	1min00s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	520×480×520mm
Weight	60kg
