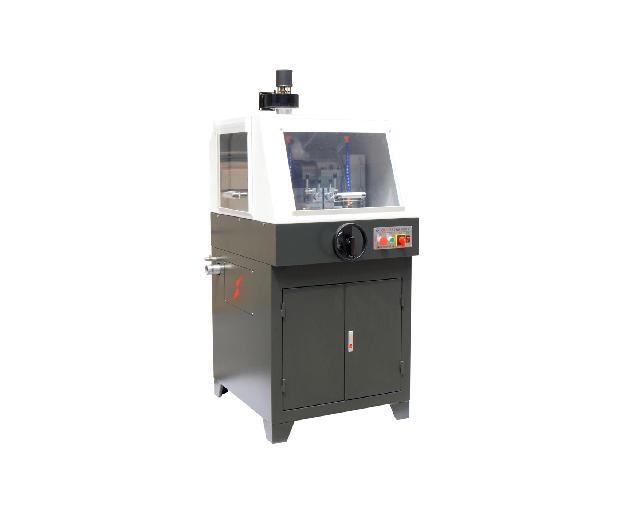

QG-5A Heavy-Duty Metallographic Cutter | 100x100mm Irregular Samples | 4kW Industrial Motor

The QG-5A Industrial Metallographic Cutter redefines large-sample processing. Its 4kW motor delivers 2800r/min cutting force to handle 100mm-thick titanium blocks, while dual quick-clamps secure multi-angle composites. The military-grade enclosure contains 99.7% metal chips – critical for aerospace cleanrooms.

==‌Why Engineers Specify QG-5A?‌==

• ==‌Chip-Free Workspace‌==: HEPA-filtered exhaust system
• ==‌Asymmetric Cutting Mode‌==: 35° blade tilt for concave surfaces
• ==‌Smart Coolant Control‌==: Auto-adjusts flow (50-500ml/min)
• ==‌Crash Detection‌==: Instantly stops on blade obstruction
• ==‌Tool-Free Blade Swap‌==: Change discs in <90 seconds

==‌FAQ‌==

• ==‌Q: Can it cut 90° internal corners?‌==
  A: Yes! Use blade tilt mode with 0.5mm step precision.

• ==‌Q: How to handle coolant with aluminum chips?‌==
  A: Built-in oil-water separator prevents sludge buildup.

• ==‌Q: What's the ROI vs outsourcing?‌==
  A: 62% cost saving in 18 months (download case study).

QG-5A metallographic sample cutting machine is mainly used for cutting cylinder and irregular samples such as multi-angular shape and convex plate etc. This machine adopts double-covers totally closed structure and double quick clamp devices, which can guarantee the absolute safety of cutting sample. It is equipped with front and back board, and the feeding speed is controllable. In order to avoid the sample burning the material texture because of over-heating in cutting, it is equipped with strong cooling system, which can avoid burning the surface of the sample. It can increase the cutting section and improve the availability of the cutting disc. The machine has the advantages of easy to use and maintain, which is the excellent equipment of cutting irregular samples.

Main Parameters:

Maximum Cutting Section	100×100mm
Rotating Speed	2800r/min
Cutting Disc Size	Φ350×2.5×Φ32mm
Electromotor	Y112M-2, 4kw, 380V, 50Hz
Dimensions	850×760×1400mm
Weight	340kg
