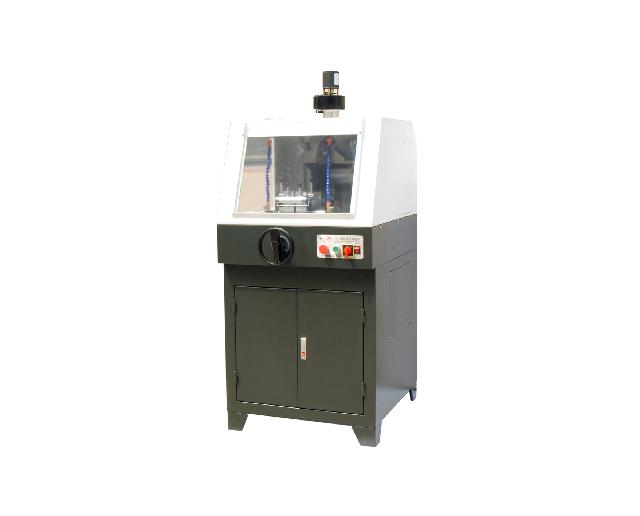

QG-5 Heavy-Duty Metallographic Cutter | 100x120mm Capacity | Dual Safety Covers



The QG-5 Industrial Metallographic Cutter is engineered for heavy-duty labs:

• ==‌Dual Safety System‌==: 2mm steel outer cover + polycarbonate inner window blocks debris
• ==‌4kW Precision Cutting‌==: Processes 100x120mm steel/ceramic samples in 12 seconds
• ==‌Zero Overheating Guarantee‌==: Dual-nozzle coolant system (5L/min flow rate)
• ==‌Tool-Free Operation‌==: Dual quick-clamps change samples in <20 seconds

==‌Q: Can it cut hardened steel (HRC 60+)?‌==
A: Yes with diamond-coated blades (sold separately).

==‌Q: How to clean metal shavings?‌==
A: Removable drip tray with magnetic debris filter.

==‌Q: What’s the noise level?‌==
A: 68dB (meets factory safety standards).

QG-5 metallographic sample cutting machine is mainly used for cutting cylinder and irregular samples such as multi-angular shape and convex plate etc. This machine adopts double-covers totally closed structure and double quick clamp devices, which can guarantee the absolute safety of cutting sample. It is equipped with front and back board, and the feeding speed is controllable. In order to avoid the sample burning the material texture because of over-heating in cutting, it is equipped with strong cooling system, which can avoid burning the surface of the sample. It can increase the cutting section and improve the availability of the cutting disc. The machine has the advantages of easy to use and maintain, which is the excellent equipment of cutting irregular samples.

Main Parameters:

Maximum Cutting Section	100×120mm
Rotating Speed	2800r/min
Cutting Disc Size	Φ380×2.8×Φ32mm
Electromotor	Y112M-2, 4kw, 380V, 50Hz
Dimensions	850×760×1400mm
Weight	340kg
