XQ-1 Hot Mounting Press Machine | Digital Temp Control, 3 Mold Sizes, CE/ISO (32kg Compact)

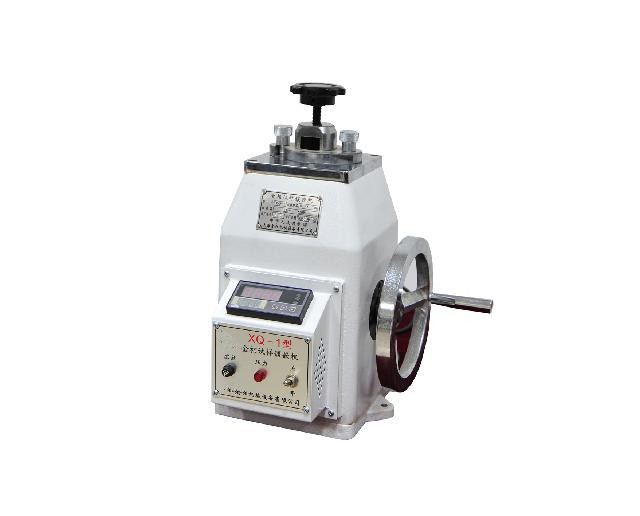

XQ-1: The Compact, Safe, and Smart Way to Mount Delicate Samples‌‌

Stop risking burns or cracked samples with clunky manual presses. The ‌XQ-1 Hot Mounting Press Machine‌ is built for labs that need ‌precision, safety, and space-saving design‌. Whether you’re embedding microelectronics, brittle ceramics, or jagged mineral samples, this press locks them in thermosetting plastics (bakelite/urea-formaldehyde) with ‌digital temperature control‌ and a ‌protective safety cover‌. No more guesswork – just load, press start, and get lab-ready mounts in minutes. Perfect for QC labs, universities, or material R&D teams.

‌Key Benefits :‌

• ‌Safe & Secure‌: Protective cover prevents accidental contact with hot surfaces.
• ‌Digital Precision‌: Stable temperature control (650W heater) ensures zero voids or cracks.
• ‌Compact Powerhouse‌: 340×260×430mm size fits tight spaces; 32kg weight for easy relocation.
• ‌3 Sizes, One Machine‌: Swap molds (Φ22/30/45mm) for tiny chips, thin alloys, or rock samples.
• ‌Plug-and-Play‌: Ships pre-calibrated – unbox, plug in, and start pressing.

Technical Specs Table ‌

‌Parameter‌	‌XQ-1 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	650W, 220V, 50Hz
‌Temperature Control‌	Digital PID (stable ±2°C)
‌Safety Feature‌	Protective cover board
‌Dimensions‌	340×260×430mm (ultra-compact)
‌Weight‌	32kg (lightest in class)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌5-8 days worldwide‌, 1 MOQ

XQ-1 Metallographic sample mounting press is designed for mounting small or irregular shape and those difficult to hold samples. It is former procedure of grinding and polishing to use thermosetting plastics to inlay the sample. It is a mechanical mounting press and the heating is operated by digital temperature controller with stable and reliable performance. To operate more safely, it is equipped with a protective cover board. Therefore it is the ideal equipment for sample inlaying.

Certification: CE, ISO9001
Model Number: XQ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameters	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	650W, 220V, 50Hz
Dimensions	340×260×430mm
Weight	32kg
