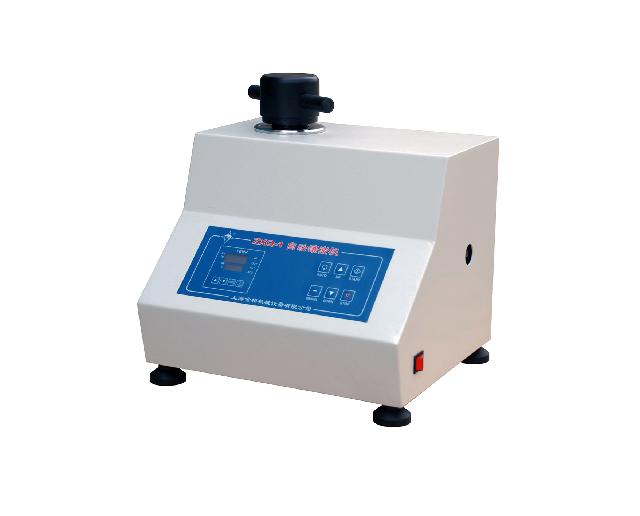

ZXQ-1 Automatic Sample Mounting Press | 1-Button Operation, 3 Mold Sizes, CE/ISO Certified

‌ZXQ-1: Ditch Manual Mounting. Get Perfect Samples in 1 Click.‌‌

Tired of fumbling with tweezers or damaging delicate samples? The ‌ZXQ-1 Automatic Sample Mounting Press‌ takes the hassle out of embedding. Designed for ‌labs, QC teams, and research facilities‌, this machine handles tricky specimens like porous ceramics, microelectronics, or jagged metals with ‌one-touch automation‌. Just load your sample, press start, and let the ZXQ-1 heat, press, and cool your specimen in bakelite or urea-formaldehyde. Perfect for anyone prepping samples for microscopy, SEM, or material analysis.

‌Key Benefits :‌

• ‌Fully Automated‌: 1-button operation – no babysitting.
• ‌Thermosetting Pro‌: Optimized for bakelite/urea-formaldehyde with ‌auto temperature control‌.
• ‌3 Mold Sizes‌: Φ22mm (microchips), Φ30mm (thin metals), Φ45mm (geology/mining).
• ‌Compact & Quiet‌: Fits on crowded lab benches (380×350×420mm).
• ‌Zero Setup‌: Pre-calibrated – works out of the box.

Technical Specs Table ‌

‌Parameter‌	‌ZXQ-1 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	650W, 220V, 50Hz
‌Total Power‌	1000W (energy-efficient)
‌Cycle Control‌	Full automation (heat/press/cool)
‌Temperature Control‌	Auto-regulated (thermosetting only)
‌Dimensions‌	380×350×420mm (space-saving)
‌Weight‌	50kg (easy to move)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌5-8 days worldwide‌, 1 MOQ

 ZXQ-1 Automatic metallographic sample mounting press is designed for mounting small or irregular shape and those difficult to hold samples, which is former procedure of grinding and polishing. The inlaying operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallographic microscope. The machine can do heating and pressing automatically, unload the pressure and stop working when finished. With another press of the key, the machine automatically turns up the sample which can be taken away. Note: It is only adapted for the thermosetting materials (such as urea-formaldehyde molding powder and bakelite powder) with the temperature automatically regulated and controlled.

Certification: CE, ISO9001
Model Number: ZXQ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 650W
Total Electric Power	1000W
Dimensions	380×350×420mm
Weight	50kg
