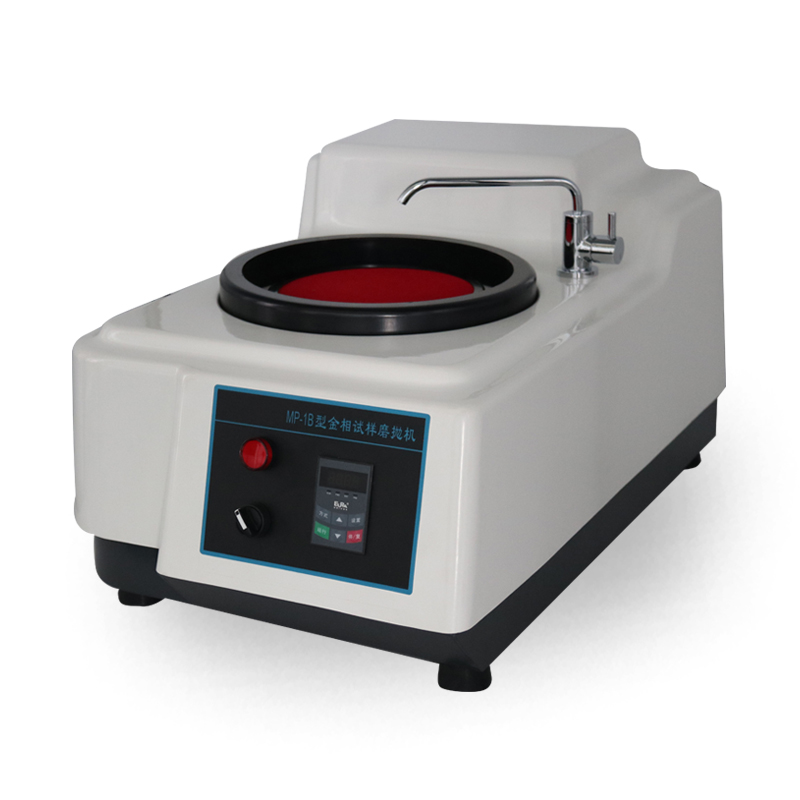

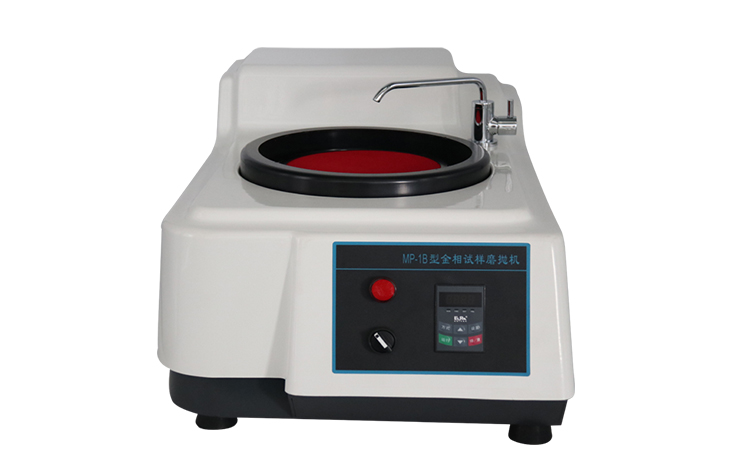

MP-1B metallographic grinding polishing machine

MP-1B metallographic grinding polishing machine

metallographic polisher
metallographic grinding
metallography polishing
metallographic grinding polishing machine
Product description: MP-1B metallographic grinding polishing machine are stepless speed test grinding and polishing machine for single disc type machine, suitable for metallographic pre-grinding, grinding and polishing
INQUIRY

MP-1B metallographic grinding polishing machine is new model .which stepless speed test grinding and polishing machine for single disc type machine, suitable for metallographic pre-grinding, grinding and polishing operation. The operation of the inverter, can be directly obtained speed from 50 to 1000 RPM, so as to make the machine more widespread application.It is an indispensable equipment in making metallographic specimen.

Technical Parameters

Operation Voltage	220V 50HZ
Dia. Of Disc	Φ203mm（Φ250mm Customizable）
Rotation Speed	50-1000RPM
Dia. Of Abrasive paper	Ø 200mm
Motor	YSS7124、550W、
Dimension	500910475mm
Weight	36kg
