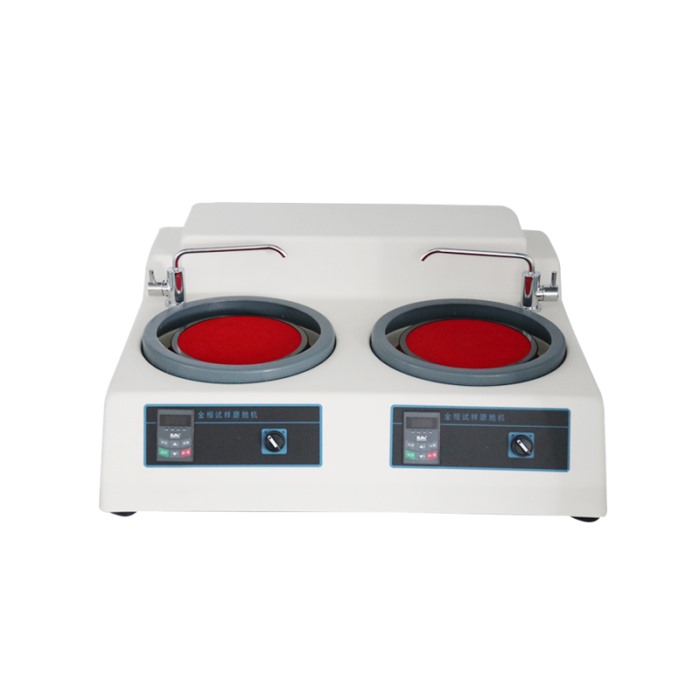

MP-2CE metallographic grinding polishing machine

MP-2CE Metallographic Grinding and Polishing Machine

is an economical model that combines the pre-grinding and polishing operations of the sample. The turntable obtains different rotation speeds through the rotation speed of the pulley, thereby realizing the grinding and polishing function. The grinding and polishing machine is a double-disc desktop machine, and the left disk is used for grinding. The right disc is used for polishing, it can be operated by two people at the same time.

Technical Parameters:

Model	MP-2CE
Grinding & Polishing disc diameter	φ203mm(φ250mm customized)
Quantity of disc	2
Control mode	Double disk / double control
Rotation speed	50-1000r/min(variable continuously)
Motor voltage	220V,50Hz
power	550W*2
Machine size (L*W*H)	710*680*330mm
Weight	53KG
