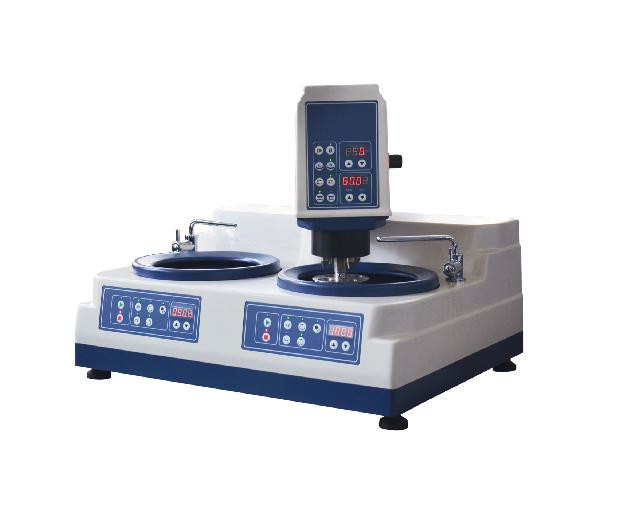

YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine

YMPZ-2 Automatic Grinder/Polisher – 4 Samples, 1 Click‌

Tired of manual sample prep? The YMPZ-2 grinds ‌4 samples simultaneously‌ with ‌stepless speed (100–1000 RPM)‌ and ‌0–60N pneumatic pressure‌ – perfect for labs processing steel, ceramics, or composites. Features a ‌DC brushless motor‌, ‌ABS corrosion-resistant chassis‌, and ‌≤65dB noise‌. CE-certified, ships in ‌5–8 days‌.

---

‌Key Features ‌

• ‌4-Sample Automation‌: Run Φ22mm, Φ30mm, or Φ45mm holders – ideal for ISO 17025 workflows.
• ‌Stepless Speed‌: Dial exact RPM for soft brass (200 RPM) or hardened steel (1000 RPM).
• ‌Pneumatic Precision‌: 0–60N pressure control – gentle on glass, aggressive on titanium.
• ‌Lab-Grade Quiet‌: ≤65dB – quieter than a vacuum cleaner.
• ‌ABS Armor‌: Sewage cover and chassis – immune to acids, oils, and daily wear.
• ‌Zero Maintenance‌: DC brushless motor – no brushes to replace for 10+ years.

---

‌Technical Specs Table‌

Parameter	Details
Disc Diameter	230mm (Stainless steel, fast-swappable)
Speed Range	100–1000 RPM (stepless or 4 presets)
Motor	400W DC Brushless, 220V, 50Hz
Sample Capacity	4 samples (Φ22/30/45mm holders included)
Pressure Range	0–60N (Pneumatic control)
Grinding Head Speed	20–120 RPM (stepless, stepper motor)
Noise Level	≤65dB (Lab-friendly)
Certifications	CE, RoHS

---

‌Why Labs Choose YMPZ-2‌

• ‌Double Productivity‌: Prep 4x more samples per hour vs. manual methods.
• ‌Space-Saver‌: 757×623×645mm footprint – fits cramped labs.
• ‌Global Voltage‌: 220V/50Hz works in EU, Asia, and North America (with adapter).‌

---

‌YMPZ-2 Automatic Metallographic Grinder & Polisher‌
‌Grind Smarter, Not Harder – 4 Samples at Once‌

The ‌YMPZ-2‌ is built for labs that demand ‌precision‌ and ‌efficiency‌:

• ‌4-Sample Automation‌: Run Φ22mm, Φ30mm, or Φ45mm holders – perfect for high-volume QA labs.
• ‌Stepless Speed‌: 100–1000 RPM – adapt to soft aluminum or hardened tool steel.
• ‌Pneumatic Pressure‌: 0–60N control – gentle on brittle materials, powerful on alloys.
• ‌Lab-Tested Durability‌: ABS chassis and stainless steel discs – survives harsh lab environments.

‌Why Labs Upgrade to YMPZ-2‌:

• ‌Time Saver‌: Prep 4x faster than manual methods – meet tight deadlines.
• ‌Whisper-Quiet‌: ≤65dB – won’t disrupt lab meetings or phone calls.
• ‌Global Ready‌: 220V compatibility – works in EU, Asia, and North America.

‌Specs That Matter‌:

• ‌Motor‌: 400W DC brushless (maintenance-free, 50,000-hour lifespan).
• ‌Dimensions‌: 757×623×645mm (30% smaller than industrial grinders).
• ‌Shipping‌: Plywood-crated, delivered in 5–8 days.

‌Includes‌:

• Φ22mm, Φ30mm, Φ45mm sample holders
• Quick-start guide with preset workflows
• 2-year warranty on motor and chassis

YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine

 In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance. This machine is controlled by single chip microcomputer, with grinding disc stepless speed regulation and digital tube display. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The machine is non-toxic painted. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience. It supports for fast disc replacing system, with the use of elasticity. Equipped with the automatic grinding head, it replaces the manual grinding and polishing. And it can set time and rotating speed of grinding head, which improves the grinding and polishing quality and efficiency of samples. This machine can be adapted to various materials preparation of test samples and the two discs operate independently. With low noise, convenient operation, beautiful appearance and safe use, it is the ideal equipment for metallographic sample preparation.

Main Parameters:

Grinding and Polishing Disc Diameter	230mm
Abrasive Paper Diameter	230mm
Rotating Speed	100～1000r/min, stepless; Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Rotating Direction	Clockwise or Anticlockwise
Electromotor	DC brushless motor, 220V, 400W
Sample Holding Quantity	4 pcs
Sample Holder Specification	Φ22mm, Φ30mm, Φ45mm (choose one)
Pressure Method	Single pneumatic pressure
Pressure Force	0~60N
Rotating Speed of Grinding Head	20~120r/min, stepless
Time Setting	0~99min
Electromotor of Grinding Head	Stepper motor, 26V
Dimensions	757×623×645mm
Weight	78kg
