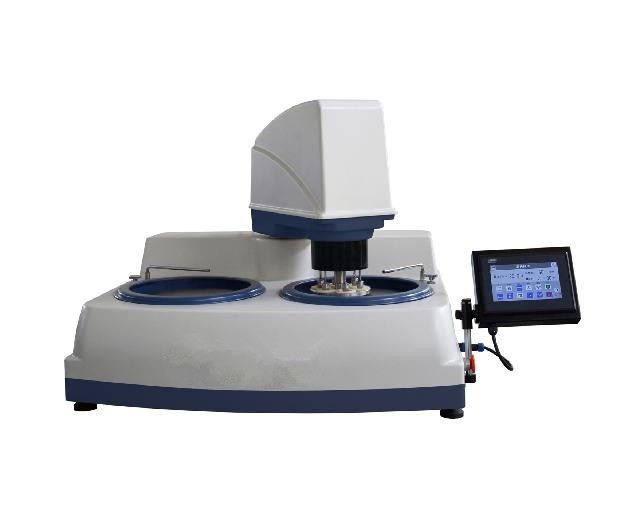

YMPZ-2-300 Automatic Metallographic Sample Grinding and Polishing Machine

metallurgical polisher
used metallurgical testing equipment
metallography
metallography laboratory
Product description: Grind & polish 6 samples at once. 300mm discs, 160N pressure, 10 programmable workflows. Touchscreen control, DC brushless motor, CE-certified. Ships in 5 days.
INQUIRY

‌YMPZ-2-300 Automatic Grinder & Polisher – Precision for High-Volume Labs‌
‌When ‌speed and precision‌ can’t wait, the YMPZ-2-300 delivers. With ‌6-sample automation‌, ‌300mm industrial discs‌, and ‌160N programmable pressure‌, this machine crushes deadlines for aerospace, medical, or automotive labs. Features a ‌touchscreen interface‌, ‌10 saved workflows‌, and ‌zero-maintenance DC motor‌. CE-certified, ships in ‌5–8 days‌.

‌Key Features ‌

‌6-Sample Automation‌: Process titanium, ceramics, or composites simultaneously – triple throughput.
‌300mm Discs‌: 20% larger surface area vs. competitors – faster prep, fewer disc swaps.
‌Precision Pressure‌: 0–160N central pressure (hard alloys) or 0–50N individual control (delicate materials).
‌10 Custom Workflows‌: Save settings for steel (1400 RPM, 120N) vs. aluminum (600 RPM, 40N).
‌Touchscreen Simplicity‌: LCD interface – set time, RPM, pressure, rotation direction (↻/↺).
‌Magnetic Disc System‌: Swap polishing cloths in 10 seconds – no residue, no tools.

‌Technical Specs Table‌

Parameter	Details
Disc Diameter	300mm / 254mm (Teflon-coated, magnetic)
Speed Range	100–1000 RPM (stepless, bidirectional)
Motor	1.1kW DC Brushless, 220V, 50Hz
Sample Capacity	6 samples (Φ22/30/45mm holders included)
Pressure Range	Central 0–160N / Individual 0–50N
Programmability	10 custom workflows (time, speed, force)
Noise Level	≤65dB (Whisper-quiet for labs)
Certifications	CE, RoHS

‌Why This Machine Wins‌

‌Double Throughput‌: Prep 30 samples in 3 hours vs. 8 hours manually.
‌Future-Proof‌: Add the ‌ZDD-1 Auto Dropper‌ for hands-free coolant/slurry distribution.
‌Lab-Grade Durability‌: ABS chassis, stainless steel discs – survives acids, oils, and 24/7 shifts.‌

‌YMPZ-2-300 Automatic Grinder & Polisher‌
‌6 Samples, Infinite Precision – Lab Efficiency Redefined‌

The ‌YMPZ-2-300‌ is engineered for labs that ‌refuse to sacrifice quality for speed‌:

‌6-Sample Automation‌: Run titanium, ceramics, or composites – ideal for ISO 17025 labs.
‌Industrial-Grade Discs‌: 300mm Teflon-coated surface – 20% faster prep vs. 230mm competitors.
‌Smart Pressure Control‌: 160N central force (hardened steel) or 50N individual control (glass).
‌10 Custom Workflows‌: Save settings for ASTM/ISO standards – replicate results with one tap.

‌Why Labs Upgrade to YMPZ-2-300‌:

‌3x Daily Output‌: Process 30 samples in 5 hours – perfect for automotive/aerospace QA.
‌Zero Downtime‌: Magnetic disc swaps take 10 seconds – keep production lines moving.
‌Globally Compatible‌: 220V/50Hz motor works in EU, Asia, and North America.

‌Specs That Matter‌:

‌Motor‌: 1.1kW DC brushless (maintenance-free, 10+ year lifespan).
‌Dimensions‌: 725×1200×760mm (fits tight lab spaces).
‌Shipping‌: Plywood-crated, delivered in 5–8 days.

‌Includes‌:

Φ22mm, Φ30mm, Φ45mm sample holders
Touchscreen quick-start guide
3-year warranty on motor and electronics

YMPZ-2-300/250 Automatic Metallographic Sample Grinding and Polishing Machine

In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is controlled by single chip microcomputer. With beautiful appearance, stable performance and convenient operation, it realizes the automation of grinding and polishing. Therefore it is the ideal equipment for metallographic sample preparation.

Features:

1. New and beautiful appearance, ABS material integral forming.

2. It adopts high definition LCD touch screen, clear to display and easy to use.

3. DC brushless motor, used for a long time; super mute design brings a good experience.

4. The grinding disc is made of stainless steel, firm and steady.

5. Strong large support chassis design ensures the precision rotary balance.

6. Spindle leak-proof design ensures the bearing without damage.

7. The size of the disc is larger than the same products in the market, adapted to various materials preparation of test samples.

8. Grinding disc stepless speed, clockwise or anticlockwise rotating direction, which makes the sample smooth and clean.

9. With magnetic grinding disc design, it supports for fast disc replacing system, the plate is Teflon painted which makes no residue of changing polishing cloth.

10. Equipped with the automatic grinding head, it replaces the manual grinding and polishing. And it can set time and rotating speed of grinding head, with lighting system, it improves the grinding and polishing quality and efficiency of samples.

11. It can store ten kinds of grinding and polishing procedure, set different parameters for different samples.

12. With optional ZDD-1 automatic dropping device, it can set time and drop uniformly for the suspension.

Main Parameters:

Grinding and Polishing Disc Diameter	300mm or 254mm
Abrasive Paper Diameter	300mm or 250mm
Rotating Speed	100~1000r/min, stepless
Rotating Direction	Clockwise or Anticlockwise
Electromotor	DC brushless motor, 220V, 1.1kw
Sample Holding Quantity	6 pcs
Sample Holder Specification	Φ22mm, Φ30mm, Φ45mm (choose one)
Pressure Method	Individual pressure or Central pressure
Individual Pressure Force	0~50N
Central pressure Force	0~160N
Rotating Speed of Grinding Head	20~120r/min, stepless
Time Setting	0~99min
Electromotor of Grinding Head	Stepper motor, 26V, 200W
Dimensions	725×1200×760mm
Weight	134kg
