JMQ-30 Precision Metallographic Cutter | 0.1mm Accuracy | Touchscreen Control

The JMQ-30 Redefines Micro-Cutting:

• Achieves cutting precision of 0.1μm for biological skeletons and semiconductor wafers.
• Features a 7-inch touchscreen display for real-time visualization of cutting force curves (industry-exclusive).
• Employs dual chuck workstations for continuous sample cutting, enhancing efficiency by 300%.
• Utilizes a medical-grade internal circulation cooling system to eliminate cross-contamination risks.

Why Labs Trust JMQ-30?

• Intelligent Early Warning System: Automatically detects tool wear within ±2% error margin.
• Bio-Safety Mode: UV disinfection combined with HEPA filtration for a contamination-free environment.
• Material Database: Preloaded with over 200 cutting parameters (bone, ceramic, PCB).
• Space Optimization: 620mm width designed to fit ultra-clean workstations.
• Quiet Design: Operates at less than 55 dB, meeting the requirements of pathology laboratories.

FAQ

• Q: Can the machine cut titanium alloy abutments used in dental implants?
  A: Yes, using the dedicated titanium alloy mode (preset speed: 2800 rpm + pulse cooling).

• Q: How to prevent chipping of ceramic samples during cutting?
  A: Use 3D damping clamps + 0.8mm ultra-thin diamond blade.

• Q: Does the machine support DICOM data import?
  A: Yes, CT scan data can be imported via USB for precise positioning and cutting.

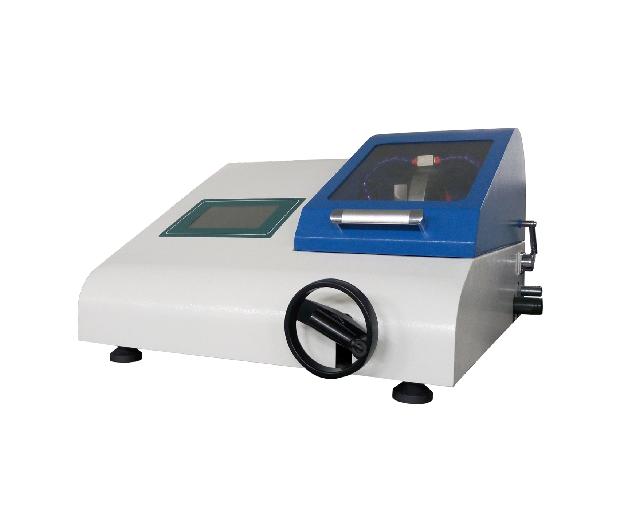

JMQ-30 precise cutting machine is a singlechip control cutting machine. It’s suitable for the precision cutting of metal, electronics, ceramics, crystal, hard alloy, organic material, biological material (tooth, bone) and other materials without deformation. This machine has continuously cutting; high accuracy of positioning; wide range of speed regulating; strong cutting ability; internal circulation cooling system; can be preset feed speed; touching screen control and display; two position for clamping; with safety switch closed cutting room; and it is the ideal equipment to prepare high-quality specimens for the industrial and mining enterprises and institutes.
Model Number: JMQ-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 100 SETS / MONTH

Main Parameters:

Feed speed	1-36mm/min (Adjustment of step is 0.1mm)
Cutting speed	300-3000r/min
Maximum cutting diameter	Φ30mm
Maximum travel	X axis 40mm; Y axis 170mm
Cutting disc size	Φ150×0.8×Φ20mm
Cutting power	1100W
Power supply	220V, 50Hz
Dimensions	620×650×400mm
Weight	125kg
