Table or Floor Type Metallographic Cutting Machine with Inside Lighting

metallography equipment
metallographic equipment
metallographic sample preparation
metallurgical polishing equipment
Product description: The QG-3 Manual Metallographic Cutter handles large samples up to 85x85mm. Choose table/floor type for your lab. Features fully-enclosed design, stainless steel body, and cooling system. CE/ISO certif
INQUIRY

The QG-3 Manual Metallographic Cutter is engineered for cutting large specimens up to 85×85mm, ideal for industrial labs and research centers. Available in table-type (730×700×540mm) and floor-type (750×730×1200mm) configurations, it combines high-speed cutting (2800r/min) with a fully-enclosed stainless steel design for maximum safety and durability. CE/ISO9001 certified and backed by a 2-year warranty.

==‌Why Labs Choose QG-3?‌==

==‌Large Sample Capacity‌==: Cuts up to 85x85mm – 30% larger than competitors.

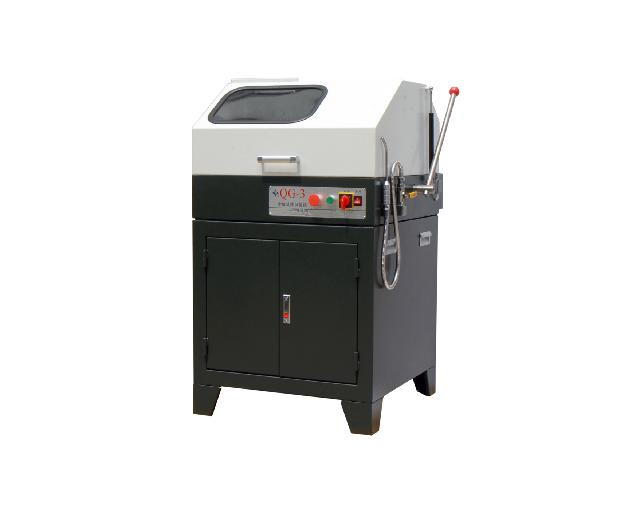

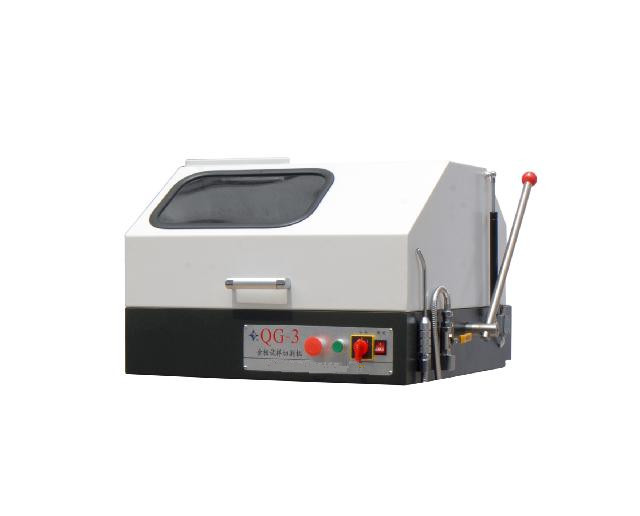

==‌Dual Installation Options‌==: Space-saving table type or heavy-duty floor type.
==‌Fully-Enclosed Safety Design‌==: Prevents debris and coolant splashing.
==‌High-Speed Cutting (2800r/min)‌==: Reduces preparation time for hard metals.
==‌Low Maintenance‌==: Stainless steel body resists rust and daily wear.

==‌FAQ‌==

==‌Q: Which type (table/floor) is better for my lab?‌==
A: Choose table type for limited space; floor type for stability with heavy samples.
==‌Q: Can it cut titanium alloys?‌==
A: Yes! Use the 2800r/min mode and ensure coolant flow is maximized.
==‌Q: How often to replace the cutting disc?‌==
A: Approx. 500 cuts (depends on material). We provide 3 free discs with bulk orders.

QG-3 Metallographic sample cutting machine is suitable for the cutting of general metallographic and lithofacies sample materials. In order to ensure the sample cutting safety, it adopts totally-enclosed structure and quick clamp device. Also it is equipped with cooling water tank for the recycling use of cooling liquid. The shell, jaw, working platform and other main parts are made of stainless steel, which can endure long time and is easy to maintain. Therefore it is ideal equipment for sample cutting. The machine has 2 types for choice, table type and floor type.

Certification: CE, ISO9001
Model Number: QG-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Maximum Cutting Section	85×85mm
Rotating Speed	2800/min
Cutting Disc Size	Φ300×2×Φ32mm
Electromotor	Y100L-2, 3kw, 380V, 50Hz
Dimensions	730×700×540mm (750×730×1200mm Floor type)
Weight	125kg (180kg Floor type)
