metallographic specimen grinding & polishing machine

Apllication

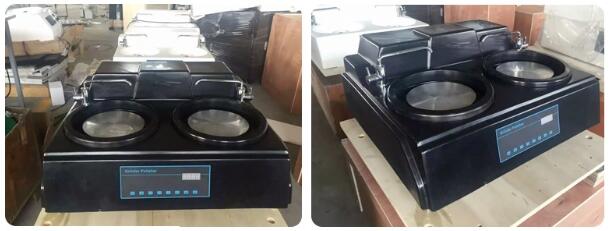

metallographic specimen grinding & polishing machine

This polisher is of single disc and suitable for carrying out pre-grinding. normal grinding and polishing against metallographic specimens. Since the machine has two speed, 300rpm and 600rpm,which favors the machine with wide applications. The machine is equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure . It is convenient and on the safe side .It is an ideal option for the lab .of factories, science and research institutions and universities.

Model
MP-160
Grinding polishing discs diameter
203mm /250mm
Rotating speed of working discs
300rpm ,600rpm ( two steps stationary speed)
Motor
370 W
Grinding/polishing disc direction
Clockwise or anticlockwise

740×400×310mm
Weight
About 30 kg
Operating voltage
AC380V,50Hz
