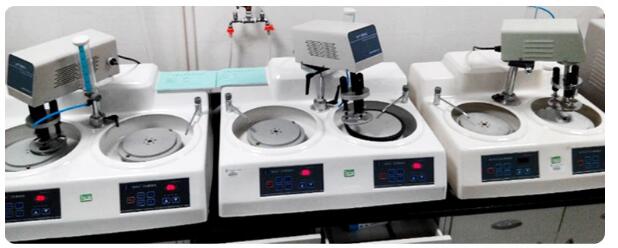

metallographic grinding and polishing machine price

metallographic grinding and polishing machine price

Features

l   The two ends are independently controlled, and one machine is used to complete the rough grinding, fine grinding, rough casting and fine polishing of the metallographic samples.

l   Two speeds are fixed and the speed is convenient. It can switch the steering wheel steering, which is convenient for operators to use.

l   The slewing water pipe can be rotated to adjust the water flow.

l   The equipment operates with low noise and smooth grinding discs.

l   With a cabinet-type workbench, there is no need to match the workbench to facilitate the placement of tools, consumables and other debris.



Technical Parameters

name	specification
Work disk diameter	Standard φ 230mm (optional φ 200mm )
Rotating speed	100-1400r/min steering forward and reverse can be switched
Two speeds	V1=300r/min    V2=600r/min (settable)
Speed display	LED display
Motor	Power: 0.75kw
power supply	Voltage: AC220V    Frequency: 50HZ
Dimensions	800 × 520 × 1000mm
weight	76kg
