Manual Metallographic Polishing Machine 230mm Disc Diameter 380V 50Hz

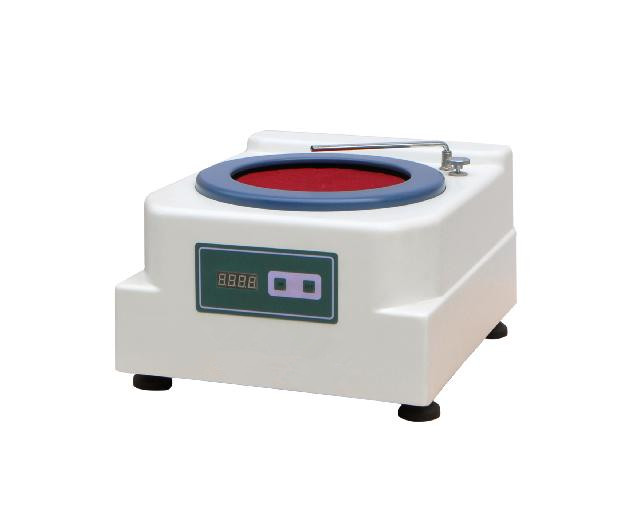

YPG-1B Metallographic Polisher – Precision Mirror Finish for Lab Samples‌
Tired of inconsistent metallographic sample polishing? The YPG-1B Metallographic Polisher delivers a flawless mirror finish with its 230mm high-speed disc and integrated water supply system. Designed for durability and low noise, it’s the go-to equipment for labs handling tough materials like metals, ceramics, and composites.

‌Key Features :‌

• ‌230mm Large Polishing Disc‌: Covers more surface area for faster, uniform results.
• ‌380V/50Hz Industrial Motor‌: High torque for demanding materials, stable performance under heavy use.
• ‌ABS Cover Construction‌: Lightweight, corrosion-resistant, and reduces operational noise.
• ‌Built-In Water Supply System‌: Ensconsistent cooling and debris removal for scratch-free polishing.
• ‌Easy Maintenance‌: Tool-free disc replacement and accessible motor components.

‌Technical Specifications Table‌

Parameter	Detail
Polishing Disc	230mm Diameter
Motor	YS7116, 0.2kW, 380V, 50Hz
Speed	900 RPM
Dimensions	480×400×260mm (Compact Design)
Weight	22kg (Portable for Lab Use)

During the metallographic sample preparation, polishing is the primary working procedure. After polished on the polishing machine, the sample surface could be very bright like mirror. YPG-1B is designed according to the customers’ requests, the cover is made of ABS, and it works steadily with low noise, easy to use and maintain. The size of the disc and the transmission power are larger than the same products in the market, which can meet the polishing requirements for more materials. It is equipped with the polishing water supply system, which is the ideal equipment for metallographic sample polishing.

Main Parameters:

Polishing Disc Diameter	230mm
Rotating Speed	900r/min
Electromotor	YS7116, 0.2kw, 380V, 50Hz
Dimensions	480×400×260mm
Weight	22kg
