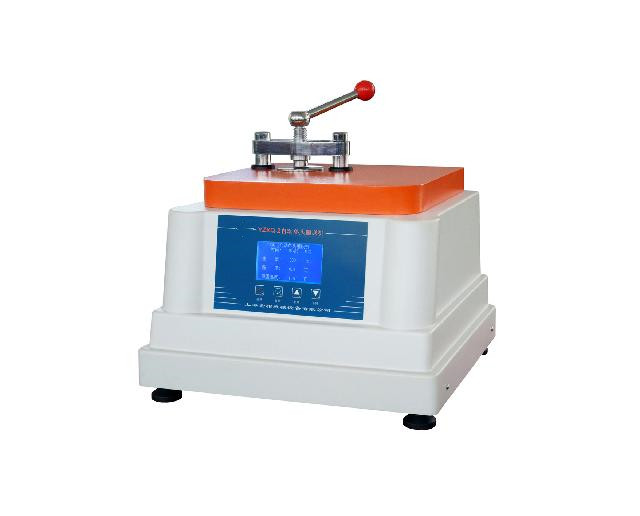

YZXQ-2 Metallographic Specimen Mounting Press | 18MPa Hydraulic, Auto Cooling, 3 Molds

YZXQ-2: The “Hydraulic Muscle” for Delicate Metallographic Specimens‌‌

Cracked edges on porous alloys? Wasted hours babysitting manual presses? The ‌YZXQ-2 Metallographic Specimen Mounting Press‌ crushes these headaches with ‌18MPa hydraulic pressure‌, ‌one-touch automation‌, and ‌rapid water cooling‌. Designed for metallography labs, failure analysis teams, and industrial QC, this press embeds even the most fragile samples (think microelectronic chips or brittle ceramics) into bakelite/urea-formaldehyde with lab-grade precision. Load your specimen, press start, and let the YZXQ-2 handle the rest – no training required.

‌Key Benefits :‌

• ‌18MPa Hydraulic Power‌: Eliminate voids and edge chipping on porous/fragile specimens.
• ‌Auto Water Cooling‌: Slash cycle times to ‌1 minute‌ for high-throughput labs.
• ‌3-Size Flexibility‌: Choose Φ22mm (micro-samples), Φ30mm (thin sections), or Φ45mm (bulky cores).
• ‌Zero Supervision‌: Program-controlled heating, pressure, and cooling – walk away.
• ‌Lab-Space Friendly‌: 520×480×520mm fits tight benches.

Technical Specs Table ‌

‌Parameter‌	‌YZXQ-2 Specifications‌
‌Mold Diameters‌	Φ22mm, Φ30mm, Φ45mm (choose one)
‌Heater Power‌	1.2kW (Φ22/30mm) / 2kW (Φ45mm)
‌System Pressure‌	0-18MPa (default 16MPa)
‌Temperature Range‌	0-180°C (default 130°C)
‌Cooling Method‌	Automatic water cooling
‌Cycle Time‌	1 minute (holding time)
‌Dimensions‌	520×480×520mm (compact footprint)
‌Weight‌	60kg (stable, vibration-free)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌5-8 days worldwide‌, 1 MOQ

  Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation. YZXQ-2 automatic single head mounting press is an advanced hydraulic water-cooling equipment. The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading. No need for operation personnel on duty, automatically complete the sample inlaying. You can optionally choose one of Φ22mm, Φ30mm, Φ45mm three mold specifications and do inlaying to meet the different requirements. It has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials. Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Certification: CE, ISO9001
Model Number: YZXQ-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T in advance
Supply Ability: 50 SETS / MONTH

Main Parameters:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 2kw (Φ45mm); 220V, 1.2kw (Φ22mm/Φ30mm)
System Pressure	0~18MPa (The default system pressure is 16MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 130℃.)
Holding Time	1min00s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	520×480×520mm
Weight	60kg
