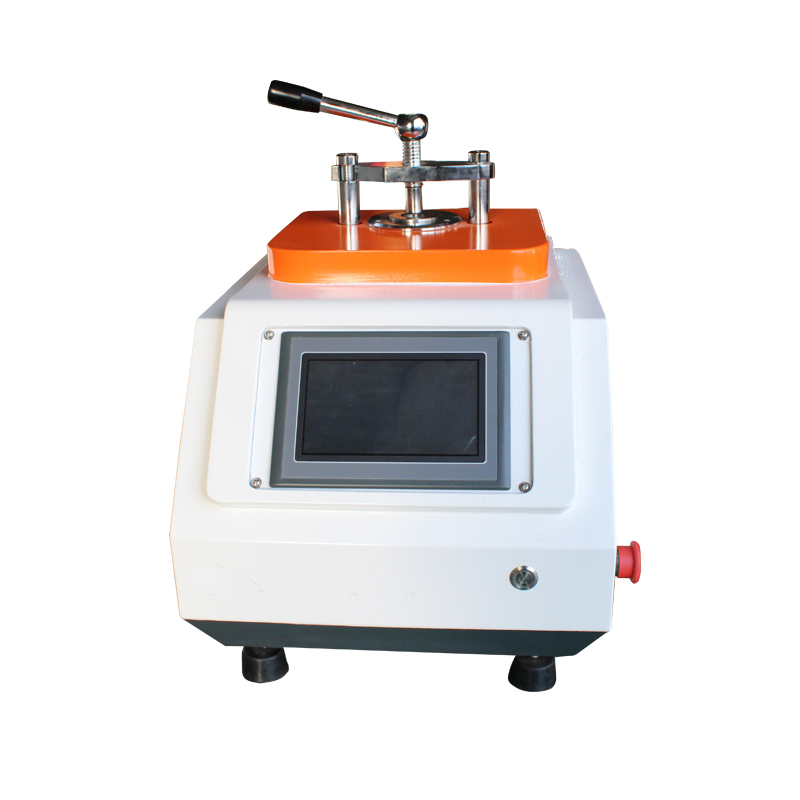

ZXQ-2S mounting press for metallographic samples

‌ZXQ-2S: The Space-Saving Workhorse for Metallography Labs‌

Need a press that fits in cramped labs but still handles tough samples? The ‌ZXQ-2S Metallographic Mounting Press‌ packs ‌1600W heating power‌ into a ‌50kg, benchtop-friendly frame‌. Perfect for ‌aerospace alloys‌, ‌microelectronics‌, or ‌porous composites‌, this press ‌eliminates edge chipping‌ during grinding or polishing. Just pick your mold (22/30/40/50mm), set the temperature (35-200°C), and let the ZXQ-2S’s ‌programmable hold time‌ (1-99min) create ‌flawless mounts‌ for SEM or cross-section analysis.

‌Key Benefits:‌

• ‌Compact & Lightweight‌: 50kg, 395×460mm footprint – ideal for small labs.
• ‌4 Mold Sizes‌: From Φ22mm micro-samples to Φ50mm weld specimens.
• ‌Precision Heating‌: Digital temperature control (±1°C) prevents resin bubbles.
• ‌Edge Defender‌: Stable pressure ensures ‌zero cracks‌ during curing.
• ‌Plug-and-Play‌: No plumbing – just plug into 220V and start mounting.

---

‌Technical Specs Table ‌

‌Parameter‌	‌ZXQ-2S Specifications‌
‌Mold Sizes‌	Φ22mm, Φ30mm, Φ40mm, Φ50mm ‌(choose one)‌
‌Temperature Range‌	35-200°C (digital control)
‌Pressure Hold Time‌	1-99 minutes (adjustable in 1-min steps)
‌Power‌	220V, 50Hz, 1600W (fast heating)
‌Dimensions‌	395×460×560mm (space-saving design)
‌Weight‌	50kg (easy to reposition)
‌Certifications‌	CE, ISO9001
‌Shipping‌	‌3-5 days worldwide‌, 1 MOQ

---

ZXQ-2S mounting press for metallographic samples

allow those specimens of unsuitable shape or size to be inlaid to meet subsequent sample preparation steps to achieve the desired inspection plane. It also protects the edges or prevents surface defects caused by the preparation process.

Model	ZXQ-2S
Mould diameter	φ22 / φ30 /φ40/ 50mm（choose one）
Pressure holding time range	1-99Min
Temperature adjusting range	35-200 °C
Input Voltage	single phase, 220V, 50Hz
Max. Power	1600W
Net weight	50Kg
Dimension	395*460*560mm
