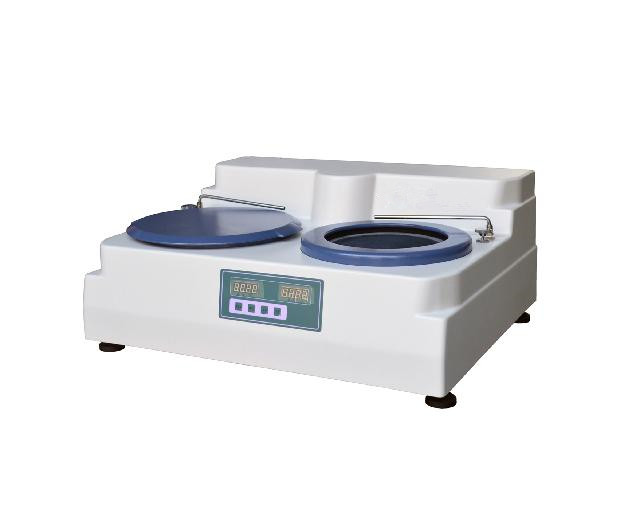

YMP-2A Grinding And Polishing Machine Four Speed Double Wheel CE ISO9001

YMP-2A Dual Wheel Grinder & Polisher – 4 Speeds, 30% Faster Prep, Zero Spills‌
‌Why waste hours swapping machines? The YMP-2A’s ‌dual-wheel design‌ lets you grind and polish on one bench. Crank it to ‌1000 RPM‌ to blast through steel slag, then drop to ‌300 RPM‌ for delicate alloy polishing – all while the ‌ABS sewage tray‌ catches every splash. With ‌4 preset speeds‌ and a ‌20-30% wider working range‌, it’s the Swiss Army knife for labs that process 50+ samples daily.

‌Key Features ‌

• ‌Two Wheels, Unlimited Workflow‌: Grind (wet/dry) on one side, polish on the other – no downtime.
• ‌Speed Squad‌: 300, 500, 600, 1000 RPM – match speed to material hardness.
• ‌ABS Armor‌: Spill-proof tray resists acids, solvents, and daily abuse.
• ‌Quiet Power‌: 58kg stable base + noise-dampened motor = focus-friendly.
• ‌CE/ISO9001 Certified‌: Meets EU and global lab safety standards.

‌Technical Specs ‌

Parameter	Details
Disc Diameter	230mm (Larger than most competitors)
Speed Range	300/500/600/1000 RPM (4 fixed speeds)
Motor	YSD802-8/4, 0.25/0.37kW, 380V
Dimensions	757×623×320mm (Fits tight workspaces)
Weight	58kg (Sturdy but portable with handles)

‌Why YMP-2A Wins‌

• ‌30% Faster Workflow‌: Switch tasks without moving samples.
• ‌Zero Cross-Contamination‌: Dedicated wheels for grinding vs. polishing.
• ‌Low Maintenance‌: ABS tray wipes clean – no rust, no stains.

  In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance, which can endure long time and is easy to maintain. Only to change the grinding and polishing disc, it can do coarse grinding, fine grinding, dry grinding, wet grinding, etc. In order to expand preparation demands of different samples, the size of the disc is larger than the same products in the market. There are more choices of different linear velocity on the working range, can increase 20-30% of effective working range, can improve the grinding and polishing quality of samples. This machine rotates steadily with low noise, and therefore it is the ideal equipment for metallographic sample preparation.

Main Parameters:

Grinding and Polishing Disc Diameter	230mm
Abrasive Paper Diameter	230mm
Rotating Speed:	Low speed 300/500r/min, high speed 600/1000r/min
Electromotor	YSD802-8/4, 0.25/0.37kw, 380V
Dimensions	757×623×320mm
Weight	58kg
