Floor Type Metallographic Polishing Equipment 230mm Disc Diameter

grinder and polisher machine
grinding sample preparation
metallurgical polishing supplies
grinding polishing machine
Product description: Need a heavy-duty polisher for industrial labs? The PG-2C offers a 230mm disc, 900-1400 RPM speed, built-in water cooling, and a drawer dirt box for easy cleanup. Built to handle tough materials—order
INQUIRY

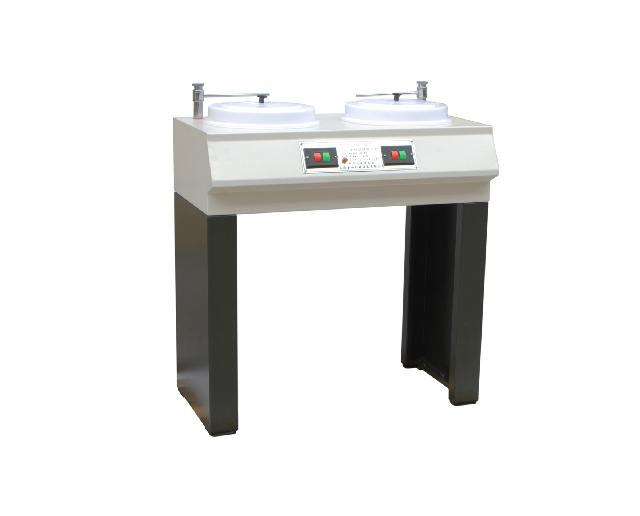

PG-2C Floor-Type Metallographic Polisher – Heavy-Duty Performance, Easy Maintenance‌
‌Stop wasting time with underpowered benchtop polishers. The PG-2C floor-type metallographic polisher combines a ‌230mm oversized disc‌, ‌380V industrial motor‌, and ‌integrated water supply system‌ to tackle hard metals, ceramics, and composites. Designed for labs that demand reliability, its ‌drawer-type dirt box‌ simplifies waste management, while the ‌customizable 1400 RPM option‌ ensures precision for any material.

‌Key Features :‌

‌Oversized 230mm Disc‌: 20% larger than standard discs for faster, more uniform polishing.
‌Industrial 380V Motor‌: YS7116 motor delivers consistent power for tough materials (e.g., titanium, hardened steel).
‌Built-In Water Supply System‌: Reduces heat and debris for scratch-free, mirror-quality finishes.
‌Drawer-Type Dirt Box‌: Collects slurry and waste effortlessly—no disassembly needed.
‌Customizable RPM‌: Choose 900 RPM (standard) or upgrade to 1400 RPM for harder materials.

‌Technical Specs ‌

Parameter	Details
Disc Diameter	230mm (Industry-leading size)
Speed	900 RPM (1400 RPM custom option)
Motor	YS7116, 0.2kW, 380V, 50Hz
Dimensions	800×520×940mm (Sturdy floor footprint)
Weight	51kg (Lightweight for easy relocation)

‌Why PG-2C Stands Out‌

‌Power vs. Competitors‌: Stronger motor (380V) vs. standard 220V polishers.
‌Easy Cleanup‌: Drawer dirt box saves 15+ minutes per session vs. manual cleaning.
‌Adaptable Speed‌: Custom 1400 RPM option handles ultra-hard samples without buying a new machine.

PG-2C metallographic sample polishing machine is designed on the basis of PG-2. It keeps the feature that the size of the disc and the transmission power are larger than the same products in the market. Besides it is equipped with the polishing water supply system and the drawer type dirt box according to the advice and demands of the customers. It has a nice appearance, easy to use and maintain.

Main Parameters:
