metallographic grinding and polishing machine

metallographic grinding and polishing machine for sale

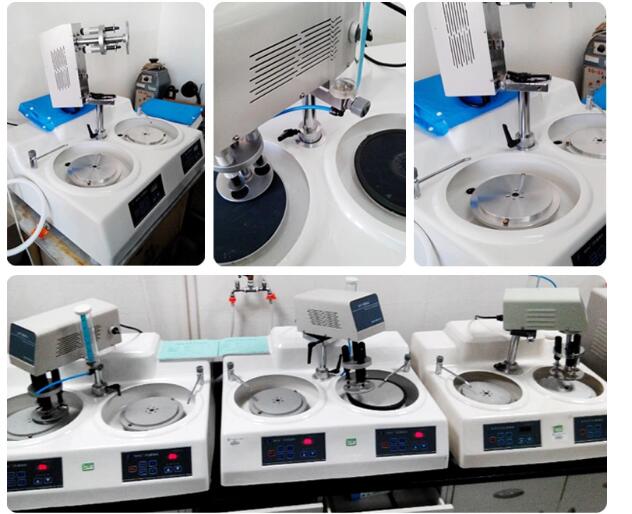

Metallographic Grinding and Polishing Machine



1. Application and Feature of Grinding-Polishing Machine
The grinding-polishing machine is a double-disc desktop, applicable to rough grinding, accurate grinding and polishing of metallographic sample. The machine has microprocessor control system, with a speed of 50-600rpm, thus widening its application. The machine is an indispensable equipment in making the metallographic sample. The machine has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat of the sample. The machine, easy to use, safe and reliable, is an ideal preparation equipment for the labs of plants, research institutes and universities and colleges etc.

2. Main Specifications:

 metallographic grinding and polishing machine

   Model

MOPAO-260E

Grinding/Polishing Disc Diameter

203mm /250mm

Rotate speed

50-600rpm (stepless speed)

150rpm 300rpm( two steps stationary speed)

Grinding/polishing disc direction

Clockwise or anticlockwise

Grinding/Polishing disc quantity

2

Motor

550W

Operating voltage

AC 220V 50HZ

Dimension

725×710×310mm

Weight

50kg
